Itsmikeyadig Posted March 2, 2020 Posted March 2, 2020 Exciting thread here for sure - looking forward to seeing your progress. Off to a real nice start!Sent from my iPhone using Tapatalk
Habana Mike Posted March 3, 2020 Posted March 3, 2020 21 hours ago, pedro849 said: I also had to google it! Now I don’t feel so bad Also googled googie. Rut roh! 2
BTWheezy Posted March 3, 2020 Author Posted March 3, 2020 @Doctortrent - I’ve used water-based finishes on all the humidors I’ve built. With plenty of time for the finishes to fully cure, I’ve never had any issues with residual odors. And this is exterior only. Interior is Spanish cedar, no finish (of course).

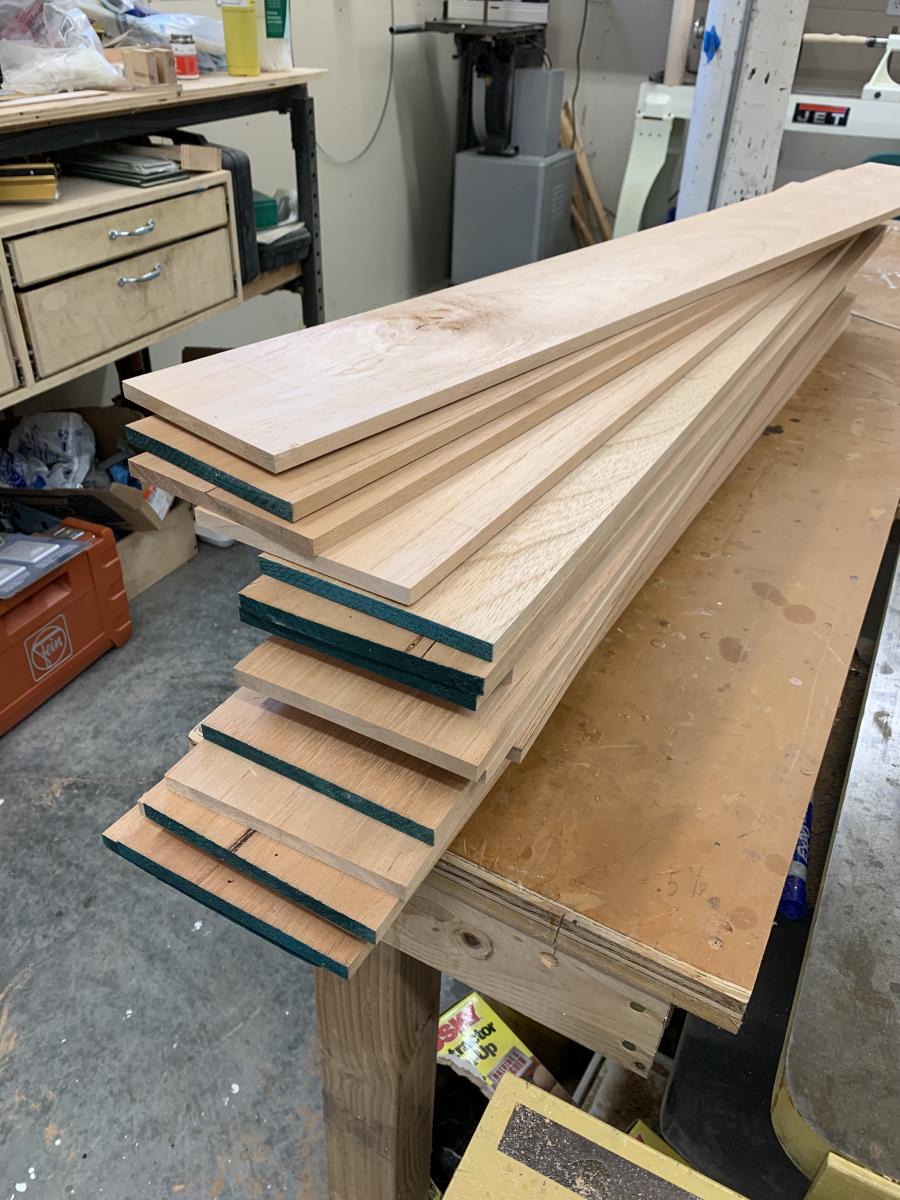

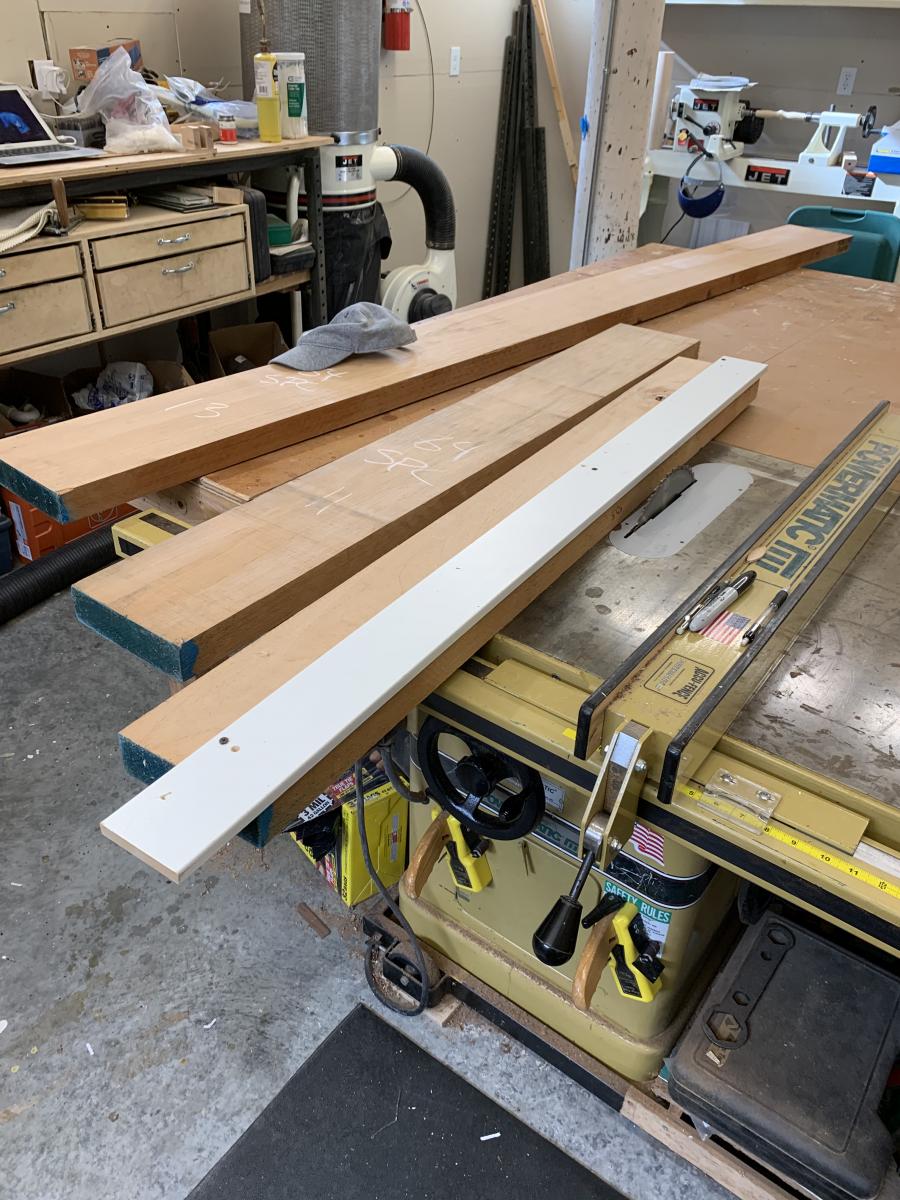

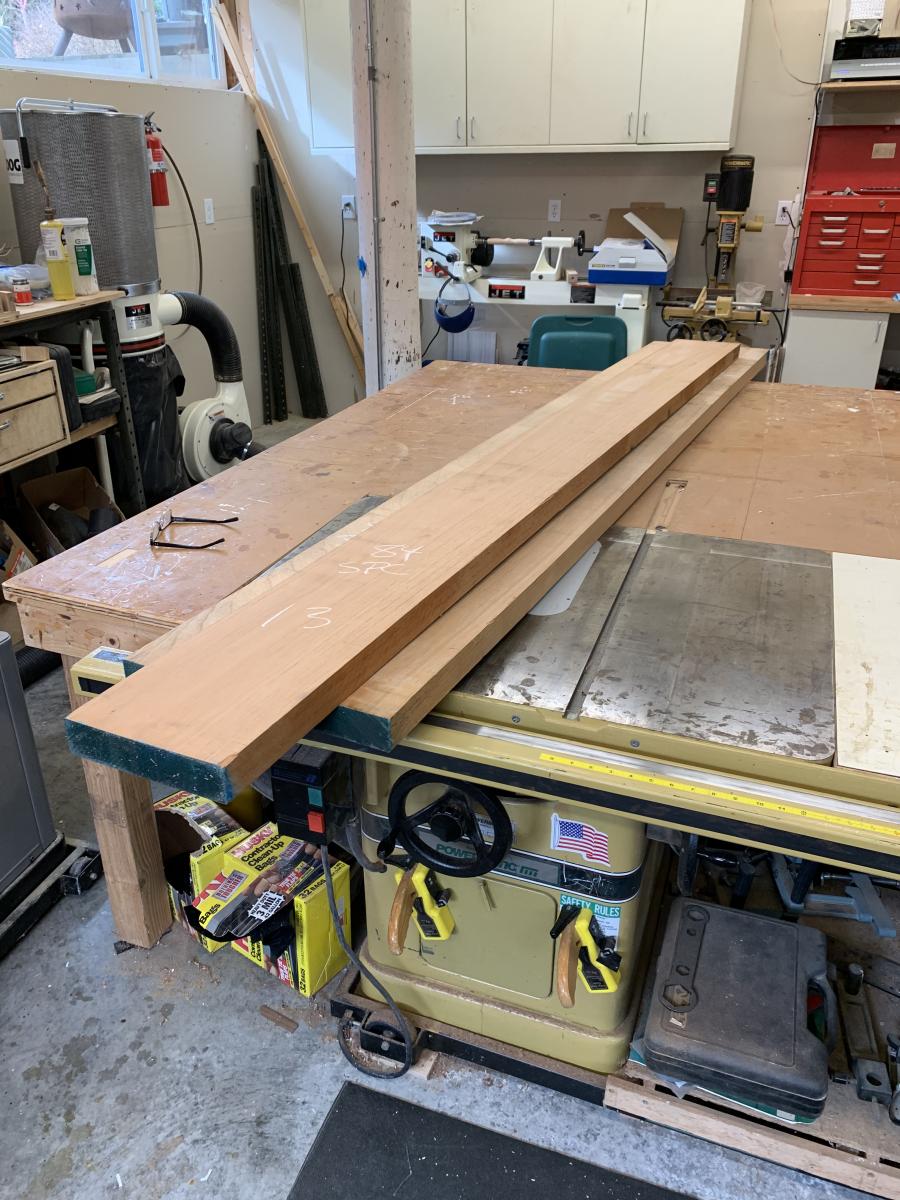

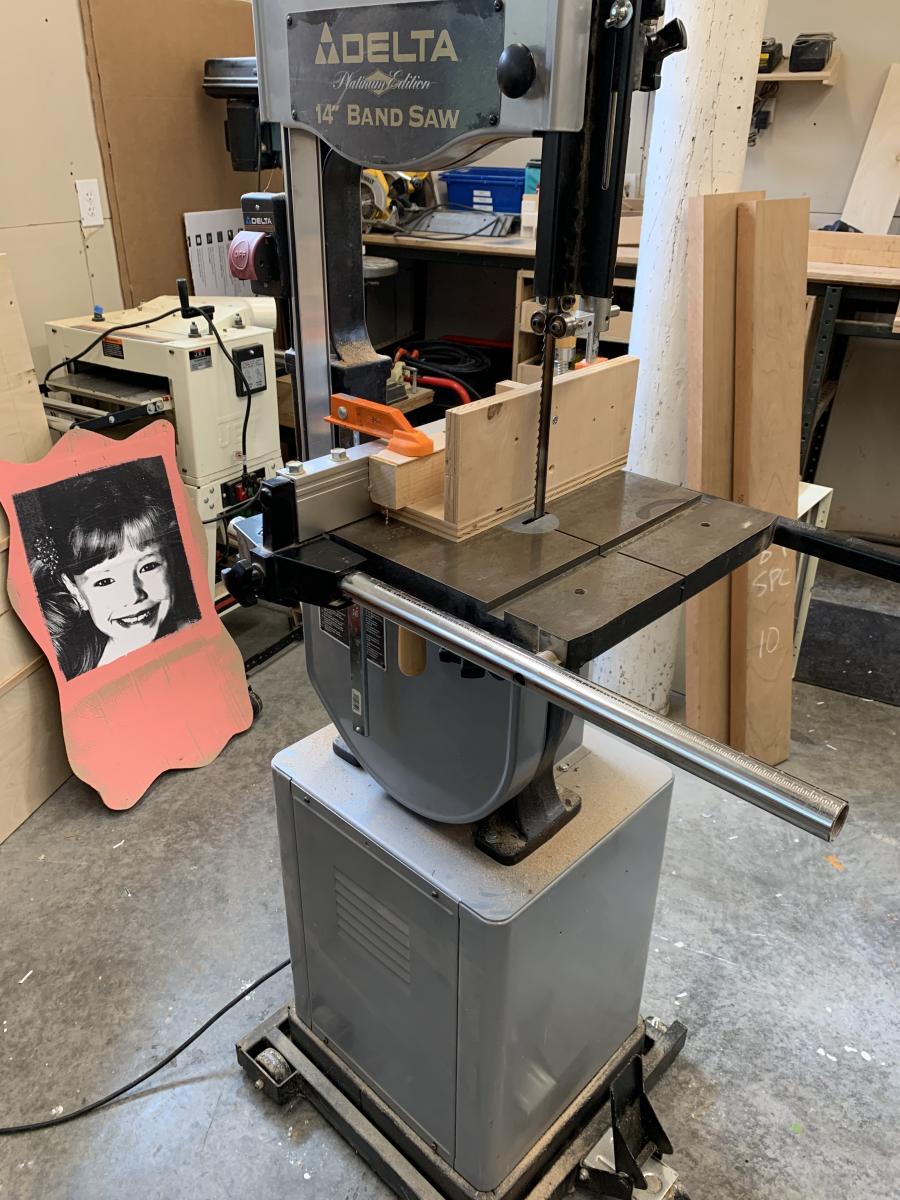

BTWheezy Posted March 4, 2020 Author Posted March 4, 2020 Progress update for the past few days... Milled a lot of 8/4 Spanish cedar down into 1/2” thick boards. Process was: 1. Get straight edges on the raw lumber. 2. Cut to length, so it’s easier to handle. 3. Re-saw on bandsaw into rough thickness. 4. Plane down to final thickness and smoothness. 2

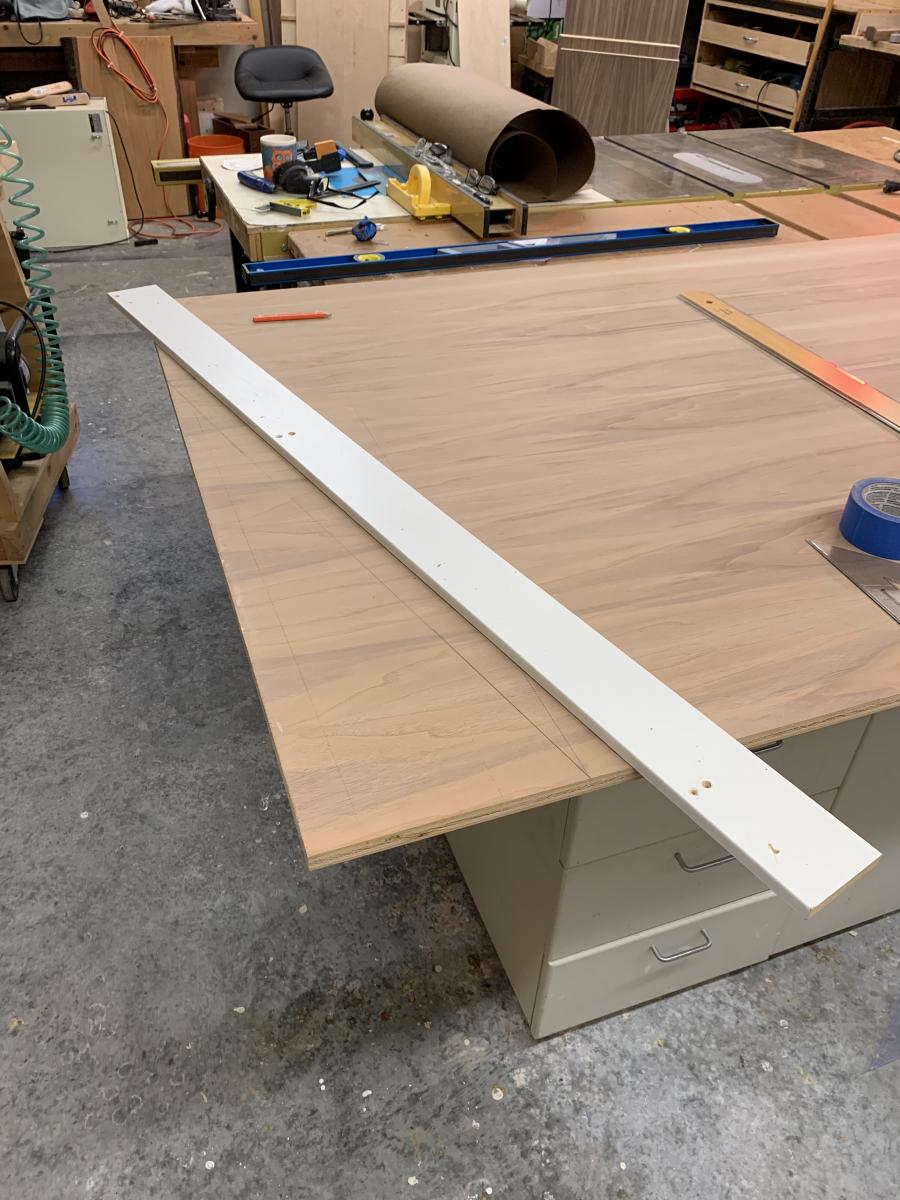

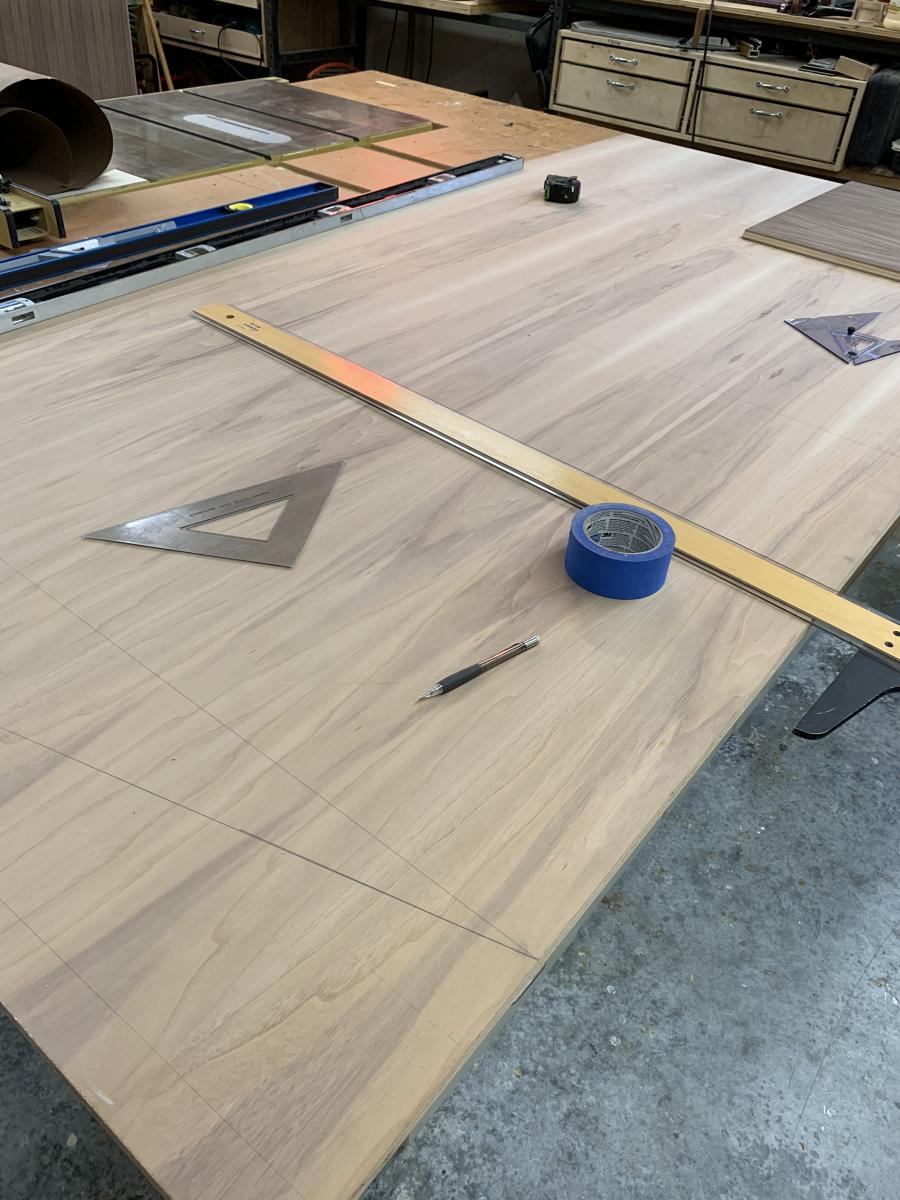

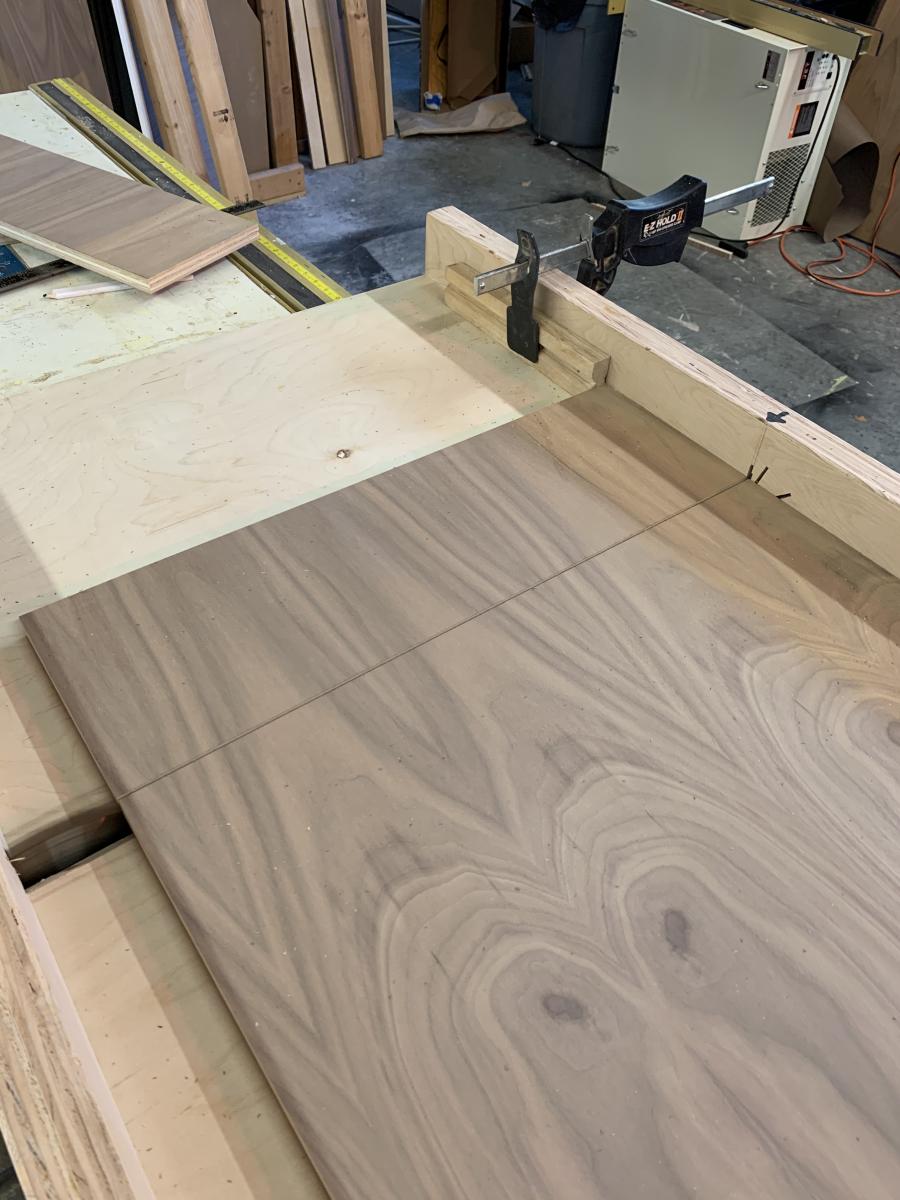

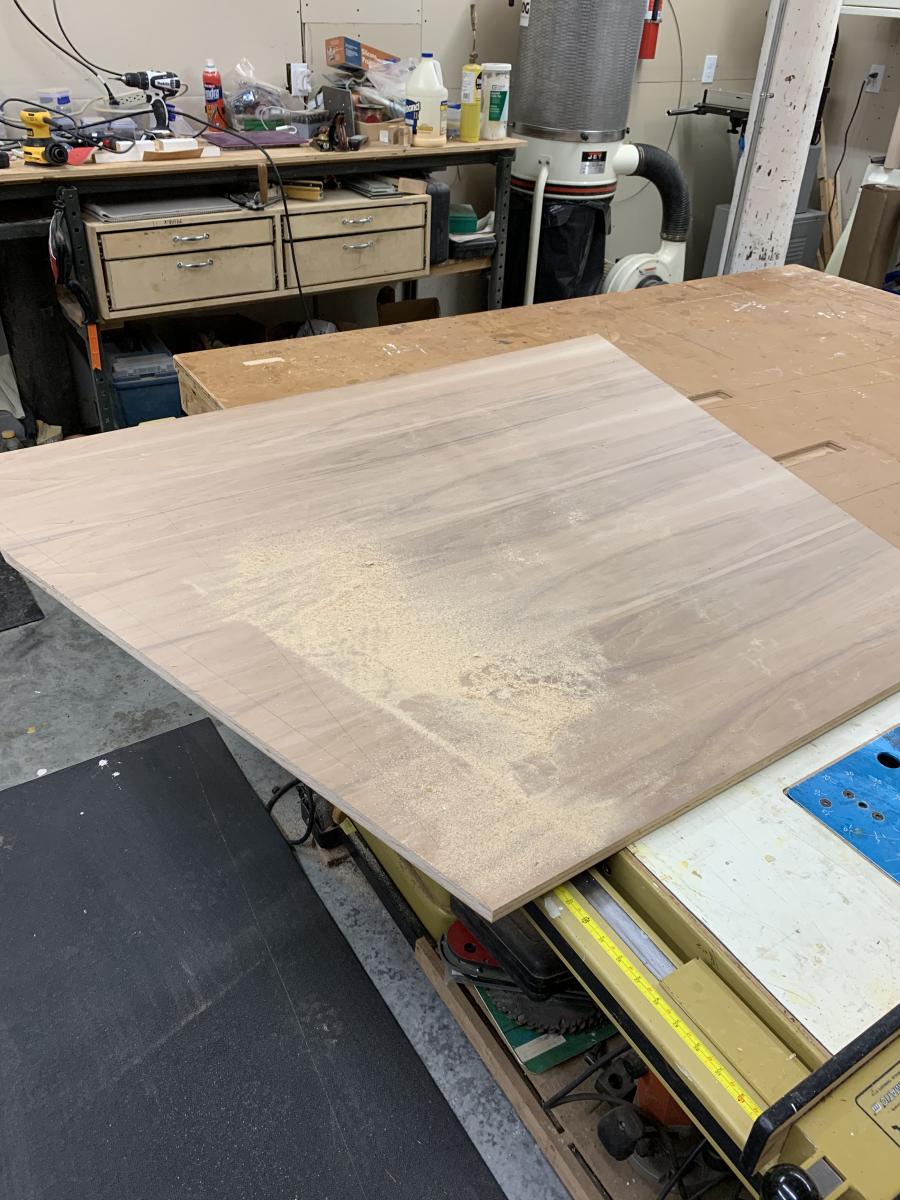

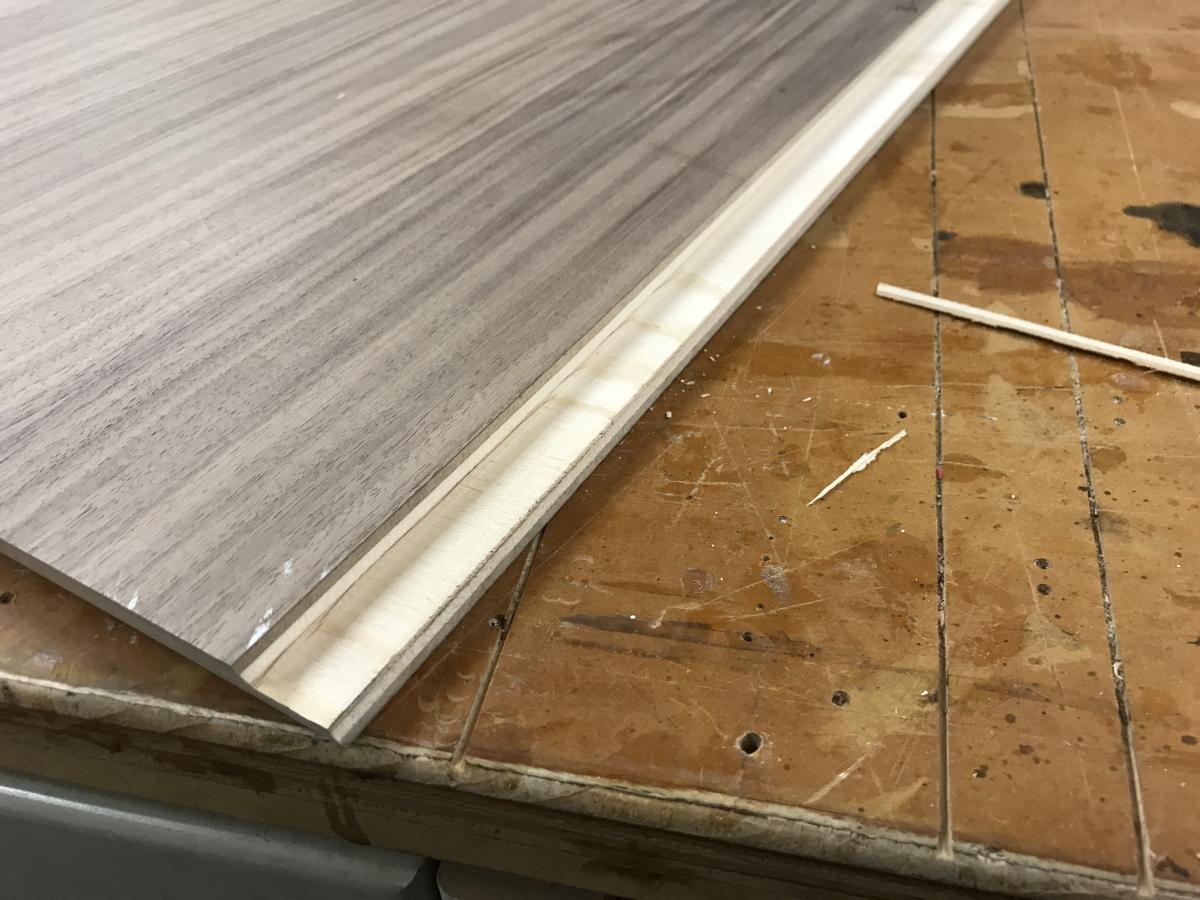

BTWheezy Posted March 4, 2020 Author Posted March 4, 2020 Next steps were getting the main panels done for the case, including the back panel which is where everything else relies on for the 15 degree angles of the design. 1. Layout of the angles and size of back panel. 2. Guide to run the circular saw against. 3. Back panel cut to size. 4. Initial cut for a smooth edge for the dados on bottom panel and side panels. 5. Dado blade to remove the rest of the material. 3
helix Posted March 4, 2020 Posted March 4, 2020 So @BTWheezy how much do I make the cheque out for again with shipping ? LOL. ? Very nice project. 1

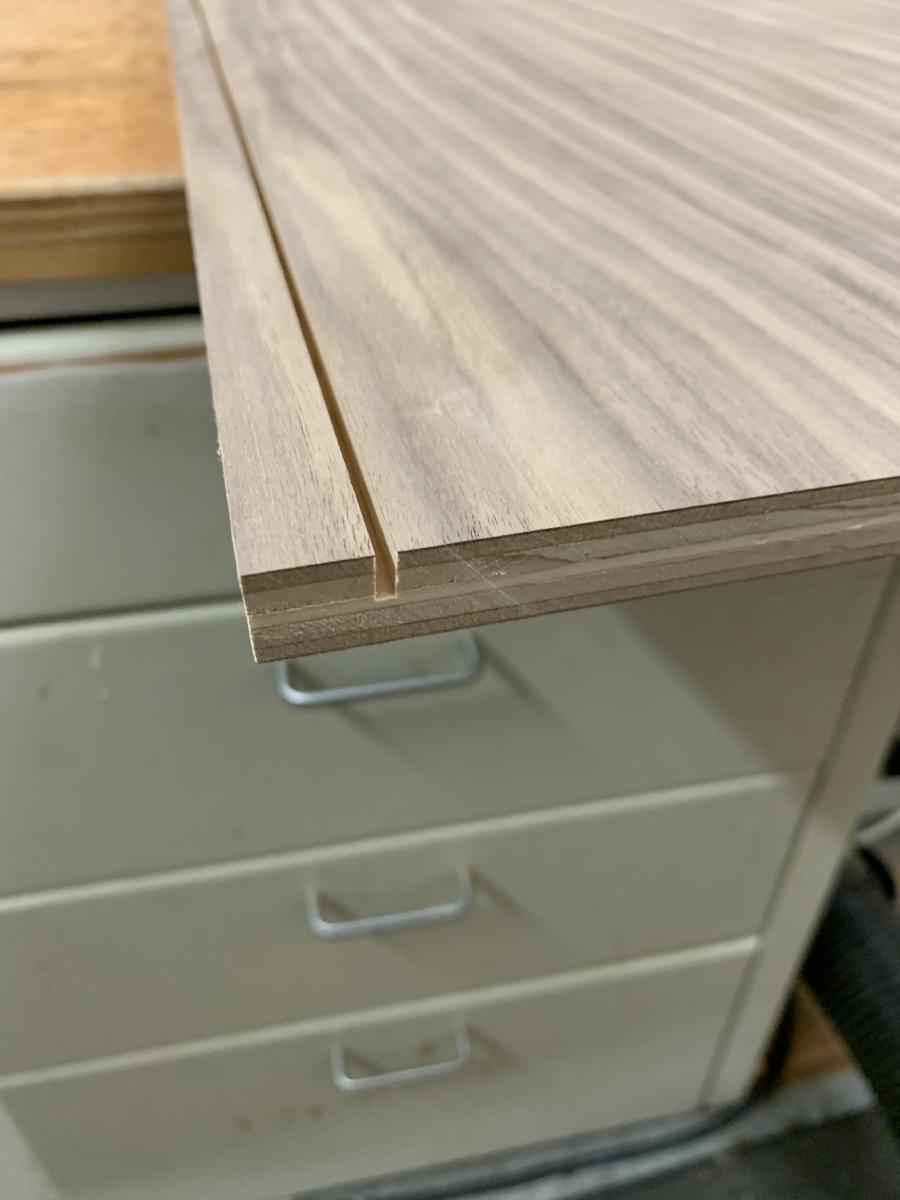

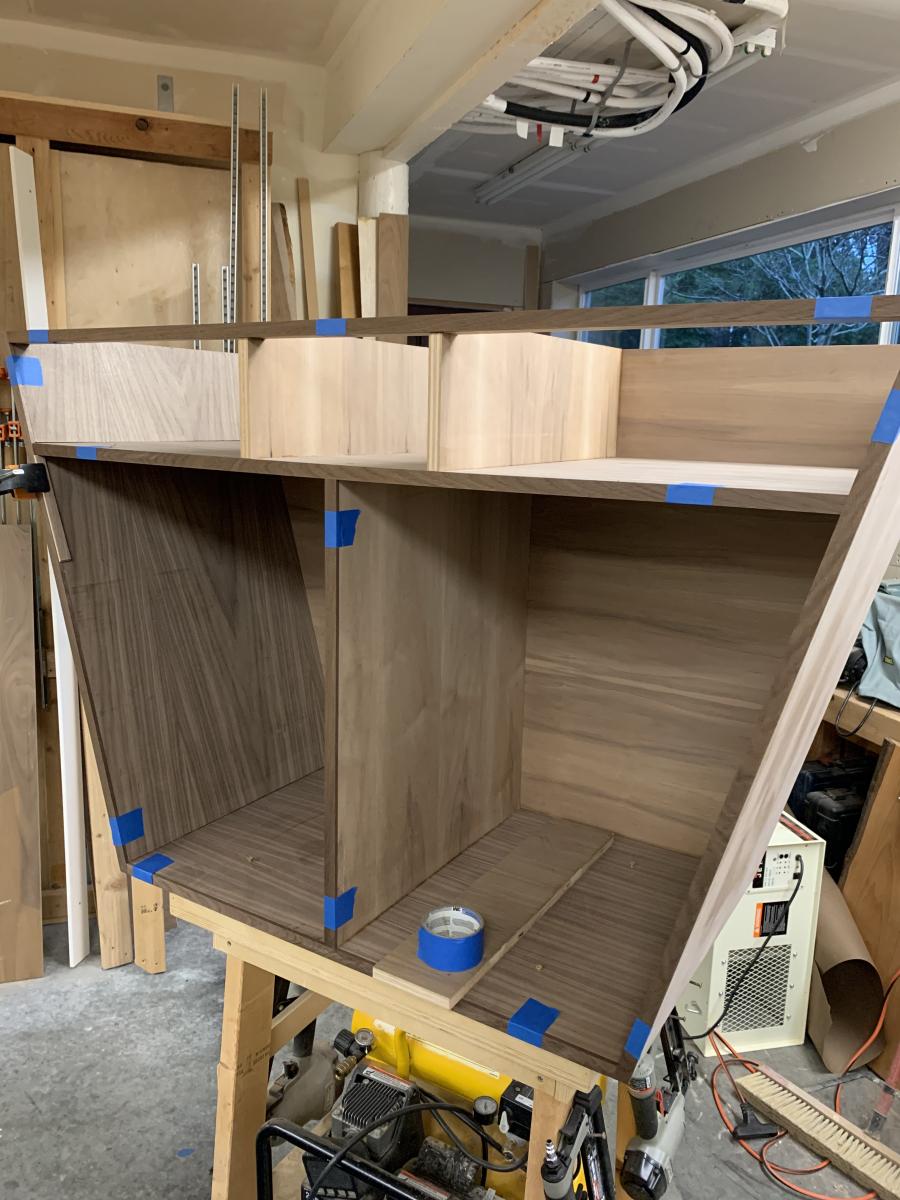

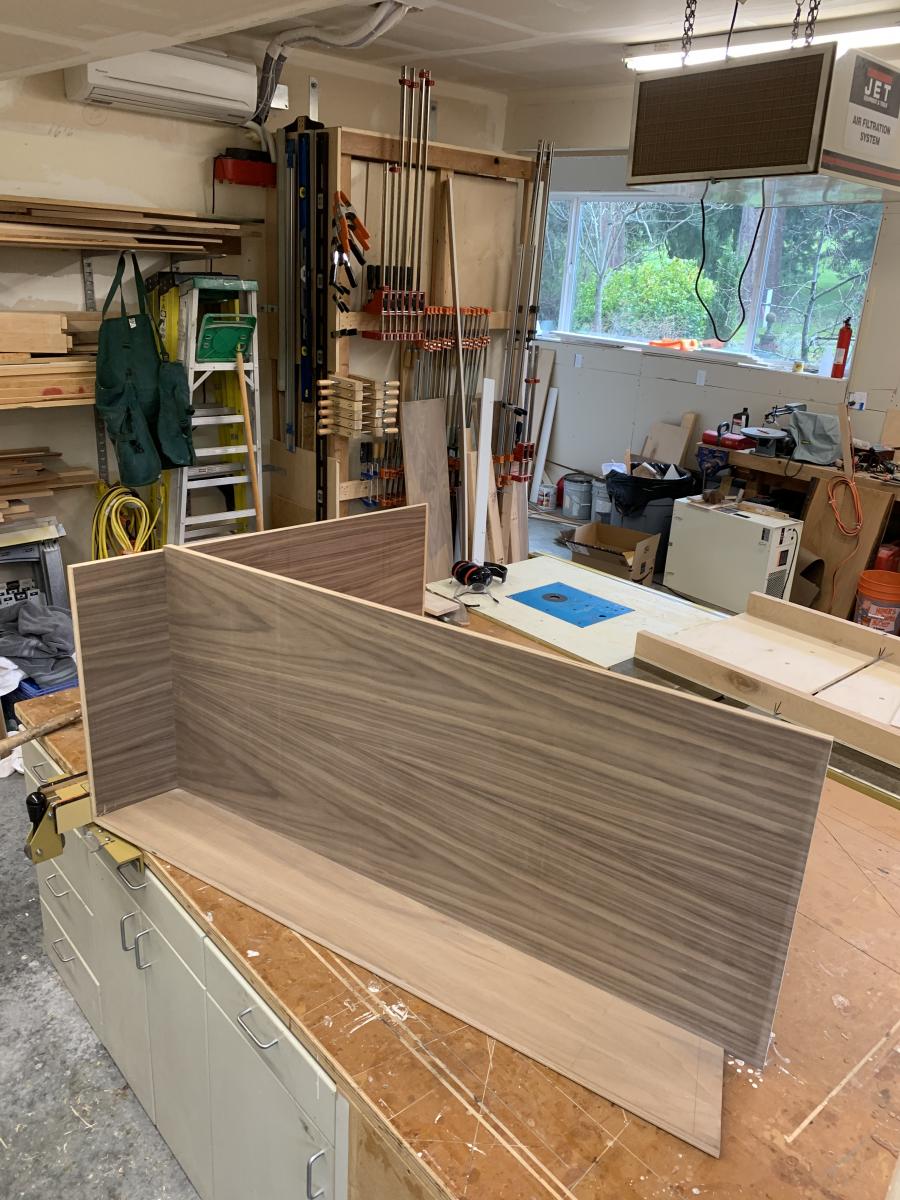

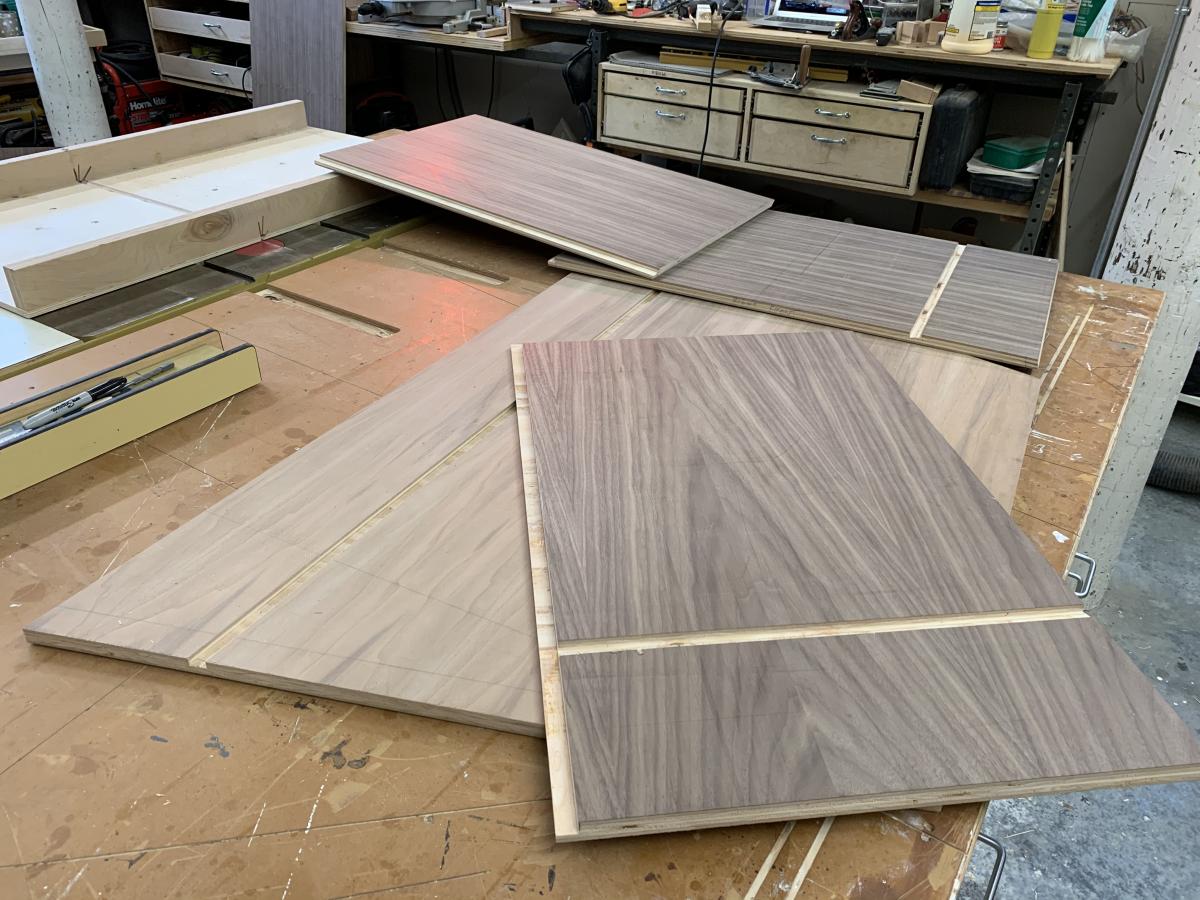

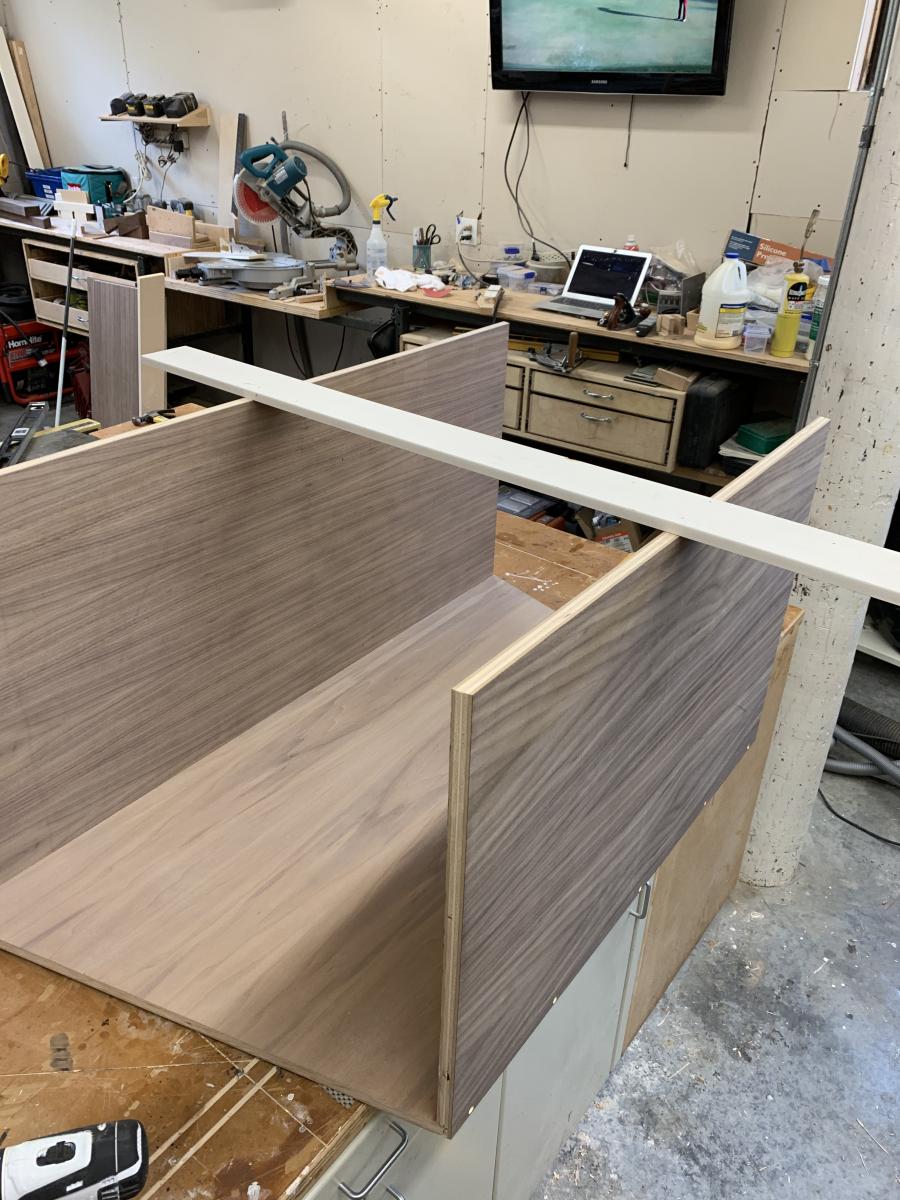

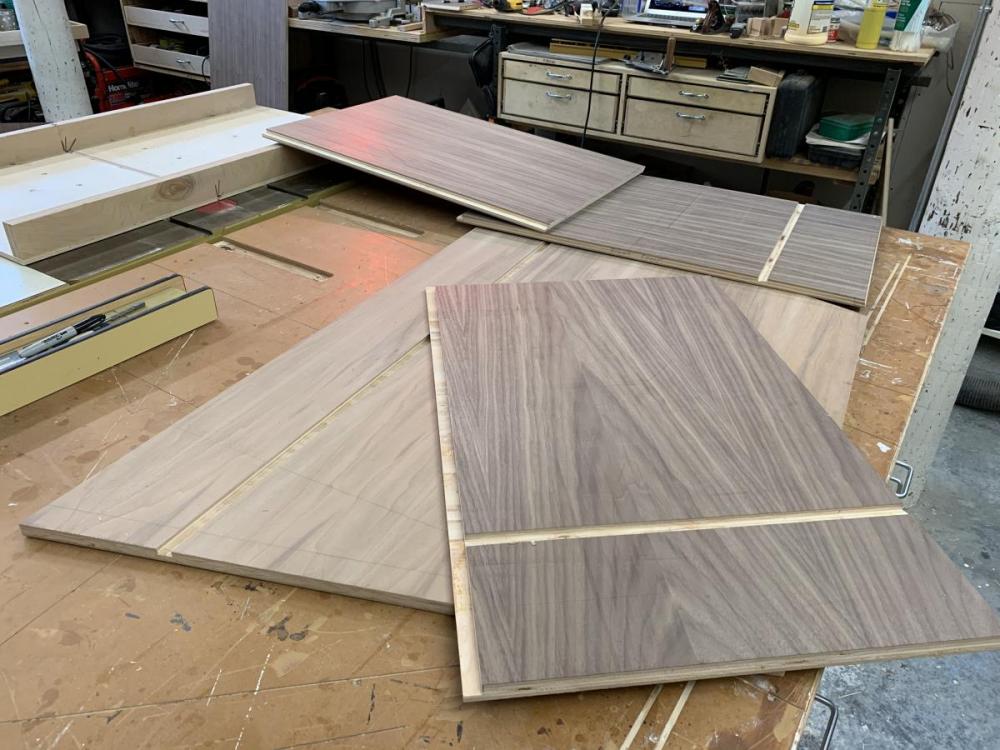

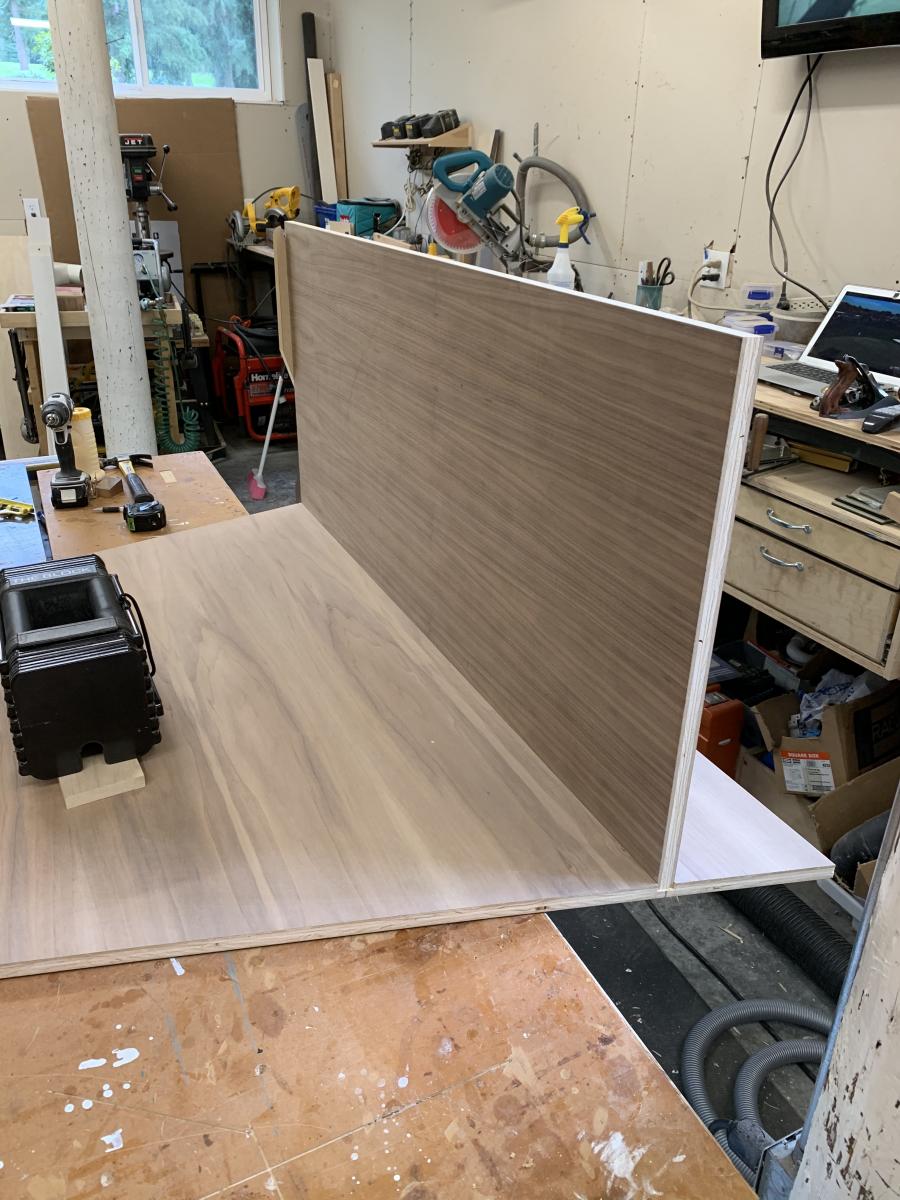

BTWheezy Posted March 8, 2020 Author Posted March 8, 2020 Today’s progress... 1. Dados (dadoes? definitely not dado’s) cut in panels. 2. Dry fit of panels. Always, always go for a snug fit at first. Because... 3. Snug joints cleaned up with a few passes of sandpaper make for a perfect fit. 4

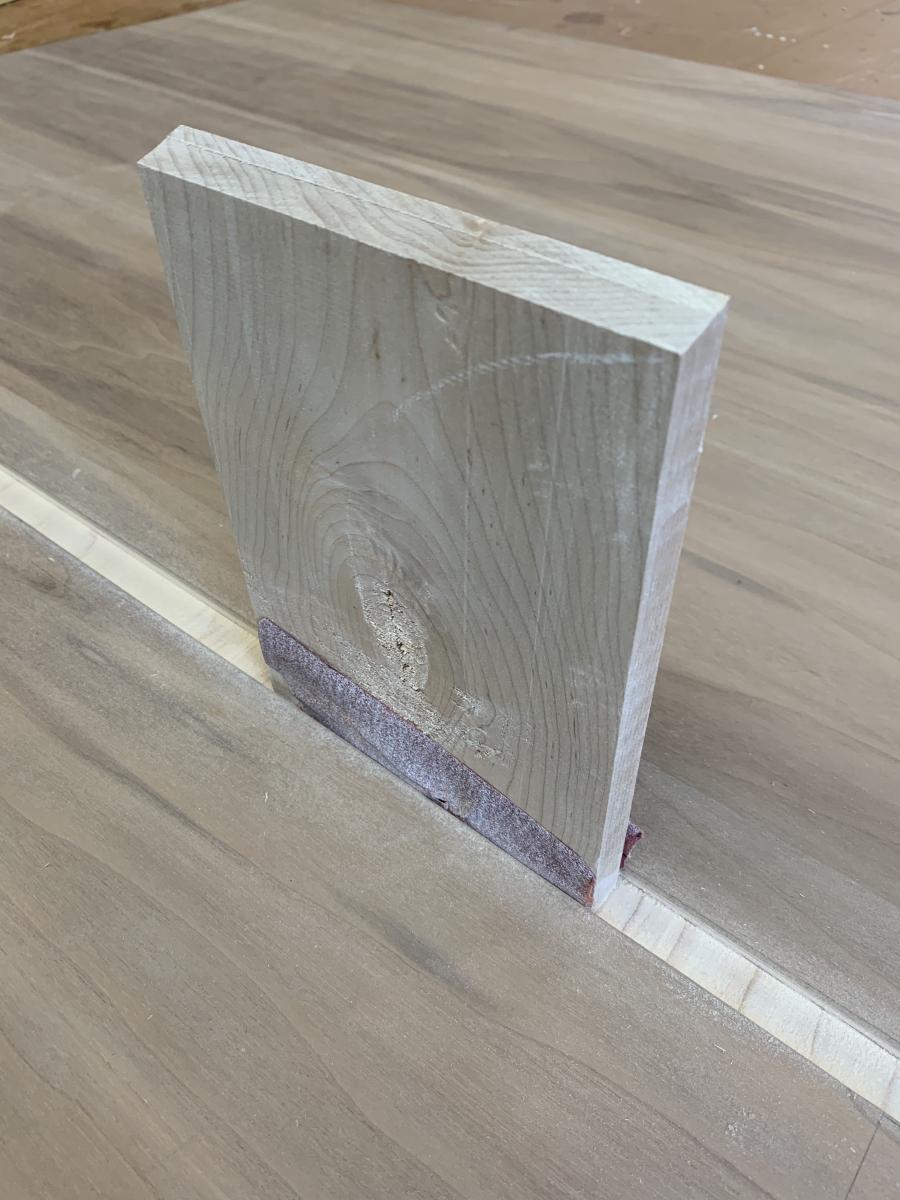

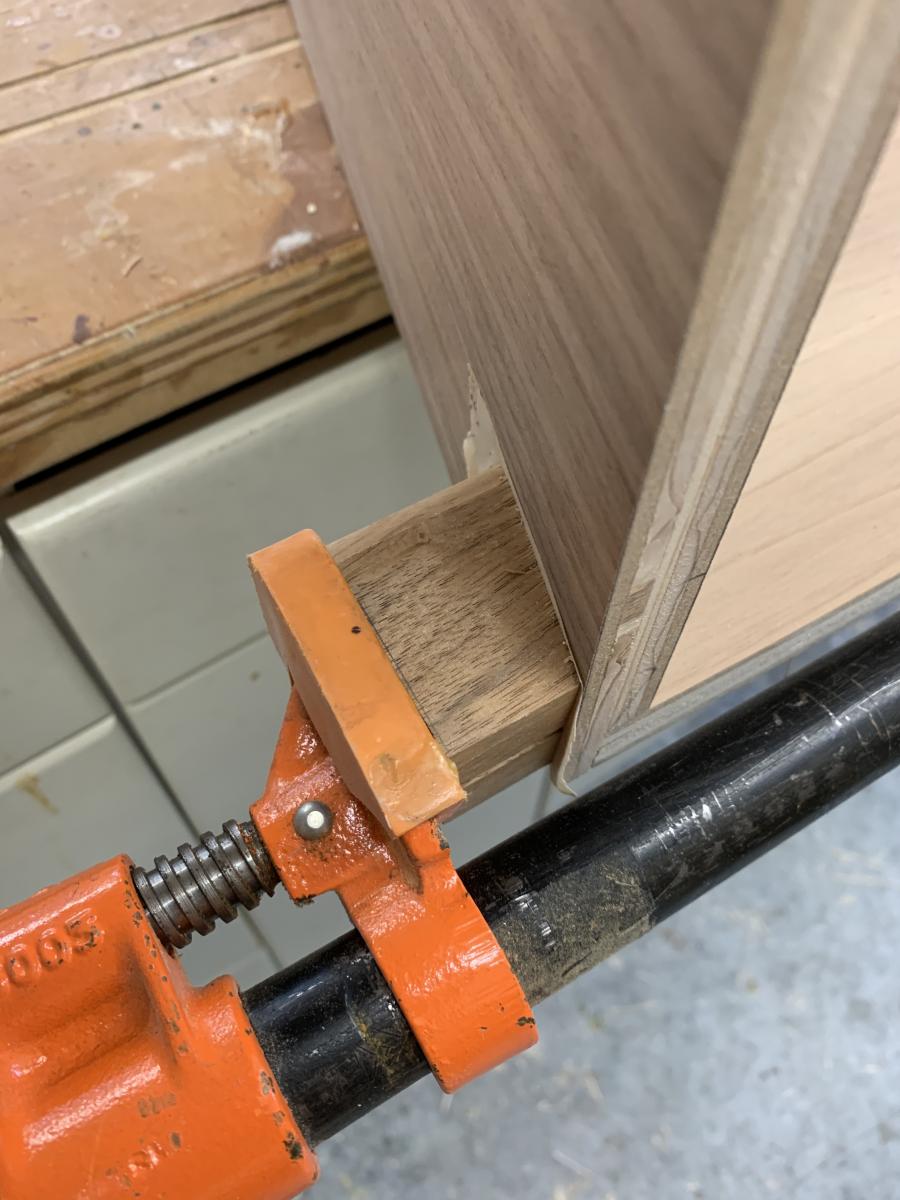

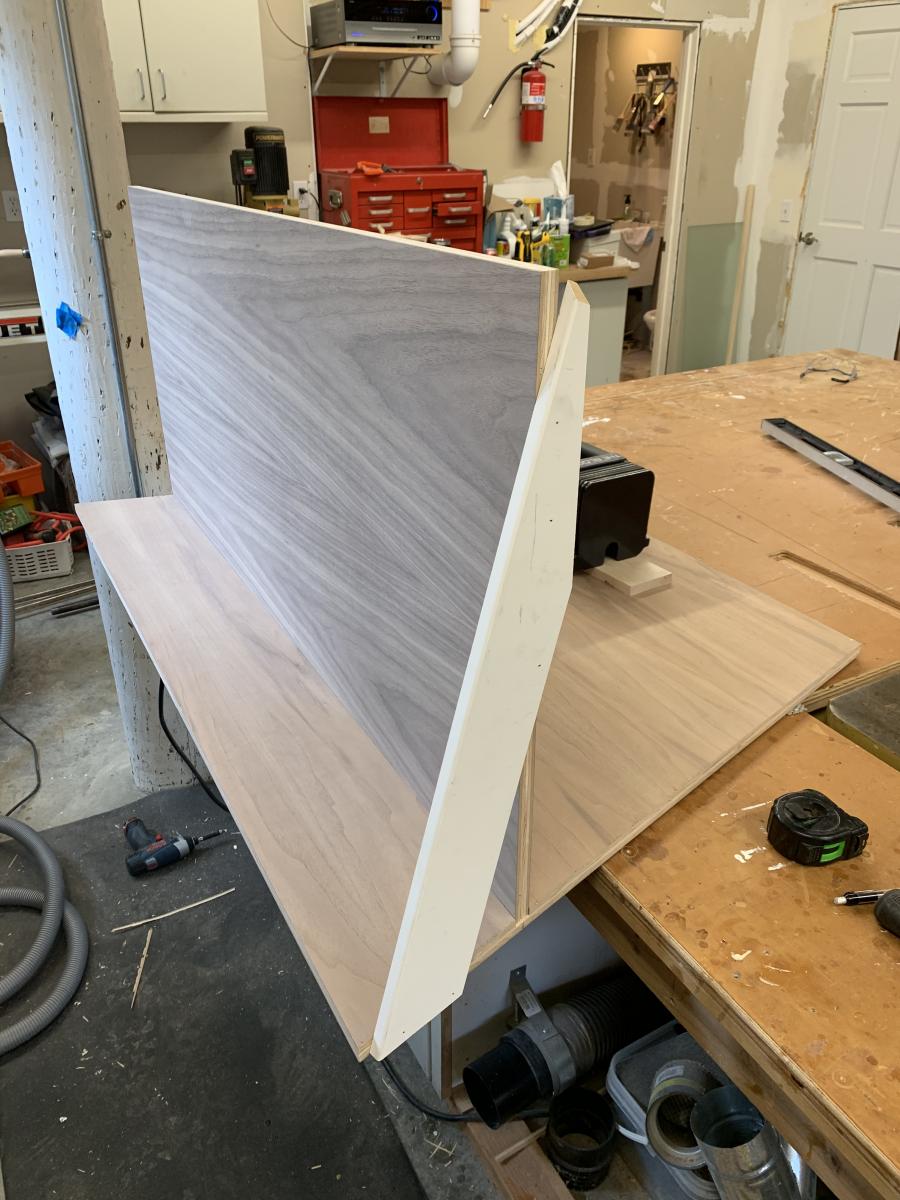

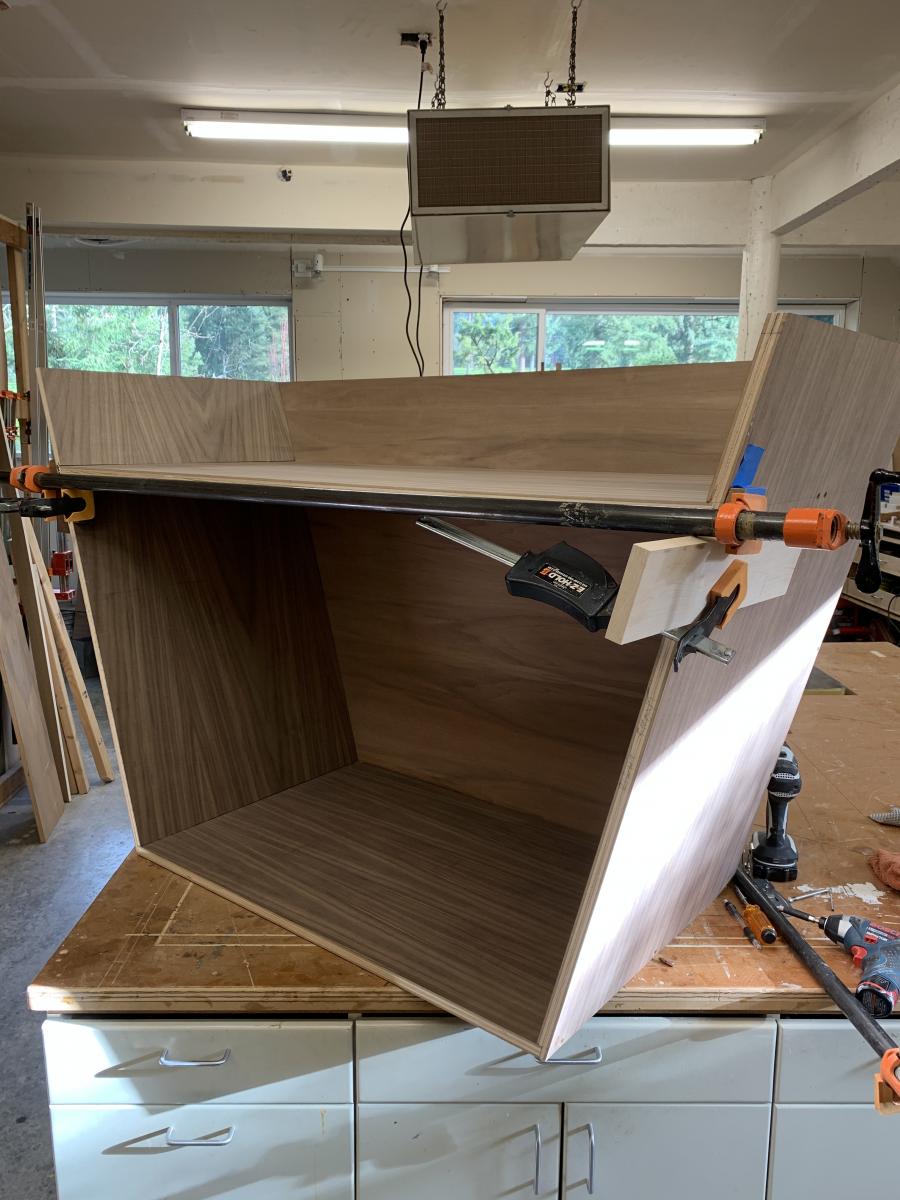

BTWheezy Posted March 8, 2020 Author Posted March 8, 2020 And today’s progress, part 2... 4. Cut some blocks at a 15 degree angle to provide a flat surface for clamping. 5. Cut to size, and dry fit the upper panel. 6. Upper panel glued-and-screwed into place. Used scrap wood tacked into place to keep the panel from moving. 7. Base glued-and-screwed. Same technique with scrap wood again. 4

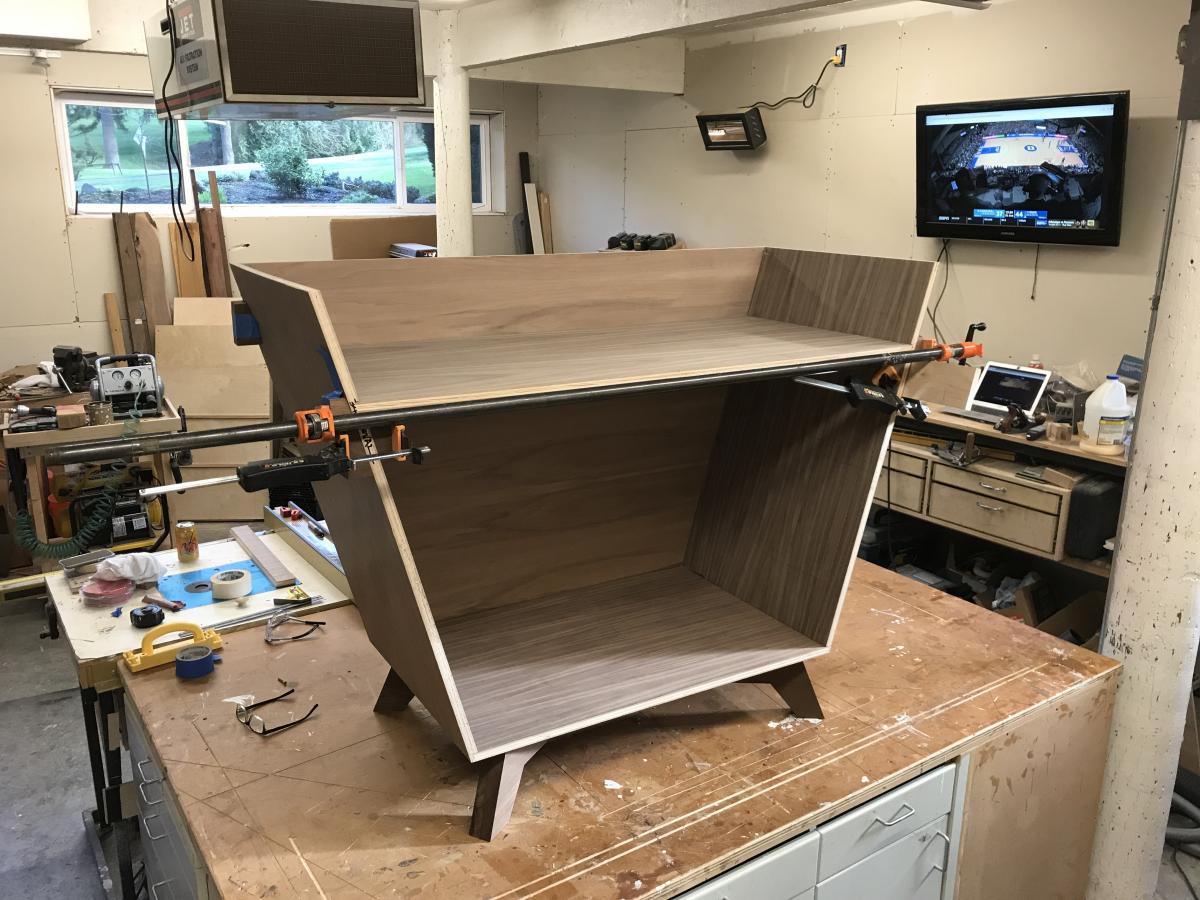

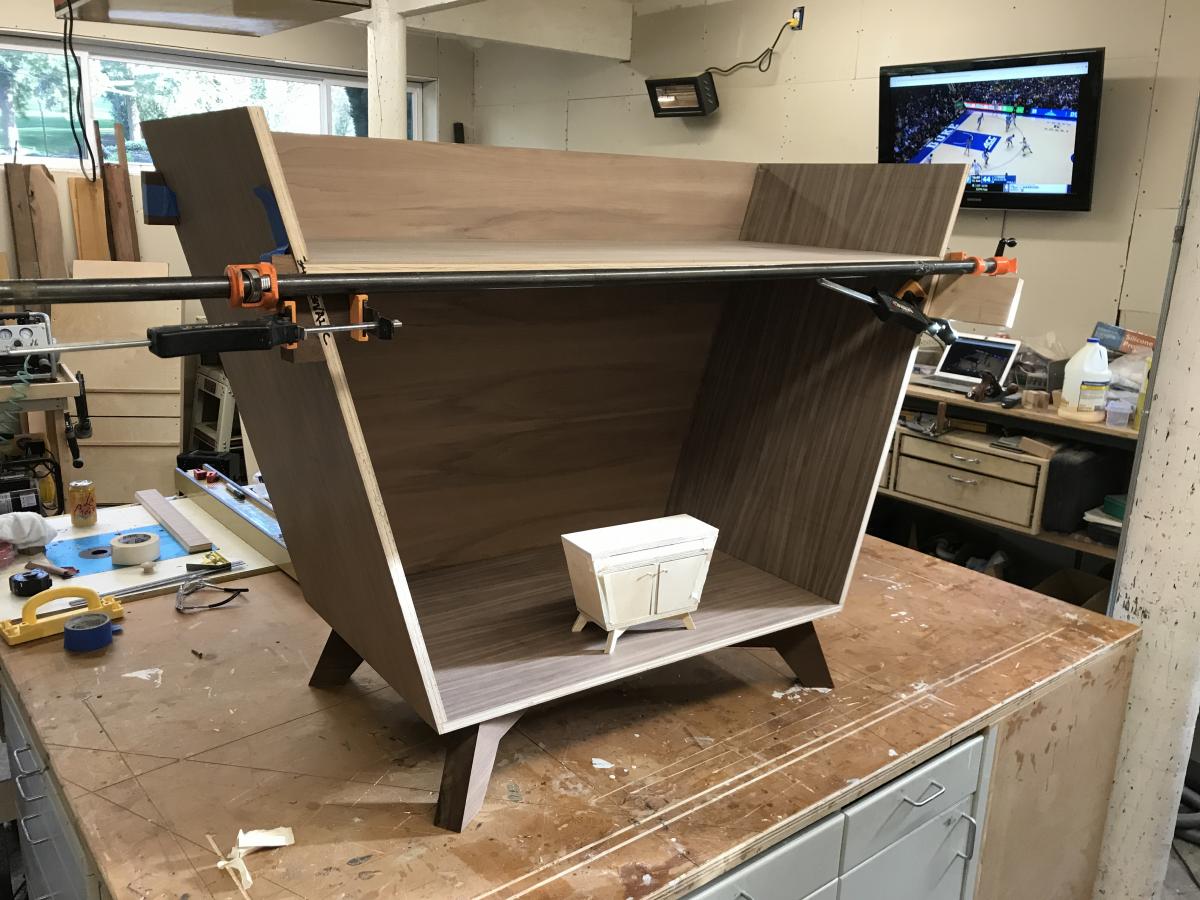

Popular Post BTWheezy Posted March 8, 2020 Author Popular Post Posted March 8, 2020 And today’s final update... 8. Case is assembled, all dados are glued-and-screwed. This thing is a beast. It required 40 sq. ft. of 3/4 inch plywood. Lots more work to go, but starting to take shape. 11
TBBCOLEAFLOVER Posted March 8, 2020 Posted March 8, 2020 This is awesome! Nice work bud. Sent from my iPhone using Tapatalk 1
RDB Posted March 8, 2020 Posted March 8, 2020 I don’t really understand this kind of work, but it’s GREAT to see it step by step like this. Thanks! 1
nav4040 Posted March 9, 2020 Posted March 9, 2020 Wow! Love how this is coming along so far. Sent from my iPhone using Tapatalk 1
CaptainQuintero Posted March 9, 2020 Posted March 9, 2020 This is gorgeous, I've a hell of a lot of time for people who woodwork, I only dabble and only hand tool stuff; this is some exceptional work
Popular Post BTWheezy Posted March 10, 2020 Author Popular Post Posted March 10, 2020 3 hours ago, CaptainQuintero said: This is gorgeous, I've a hell of a lot of time for people who woodwork, I only dabble and only hand tool stuff; this is some exceptional work Thanks Cap’n....I was thinking of doing a time-lapse video of the process, but I didn’t want people to endure hours of me walking around the shop trying to find my glasses, only to realize they’re on my head. With the case done, the progress gets a lot more fun to watch. More updates this week, and likely this weekend. 2 3

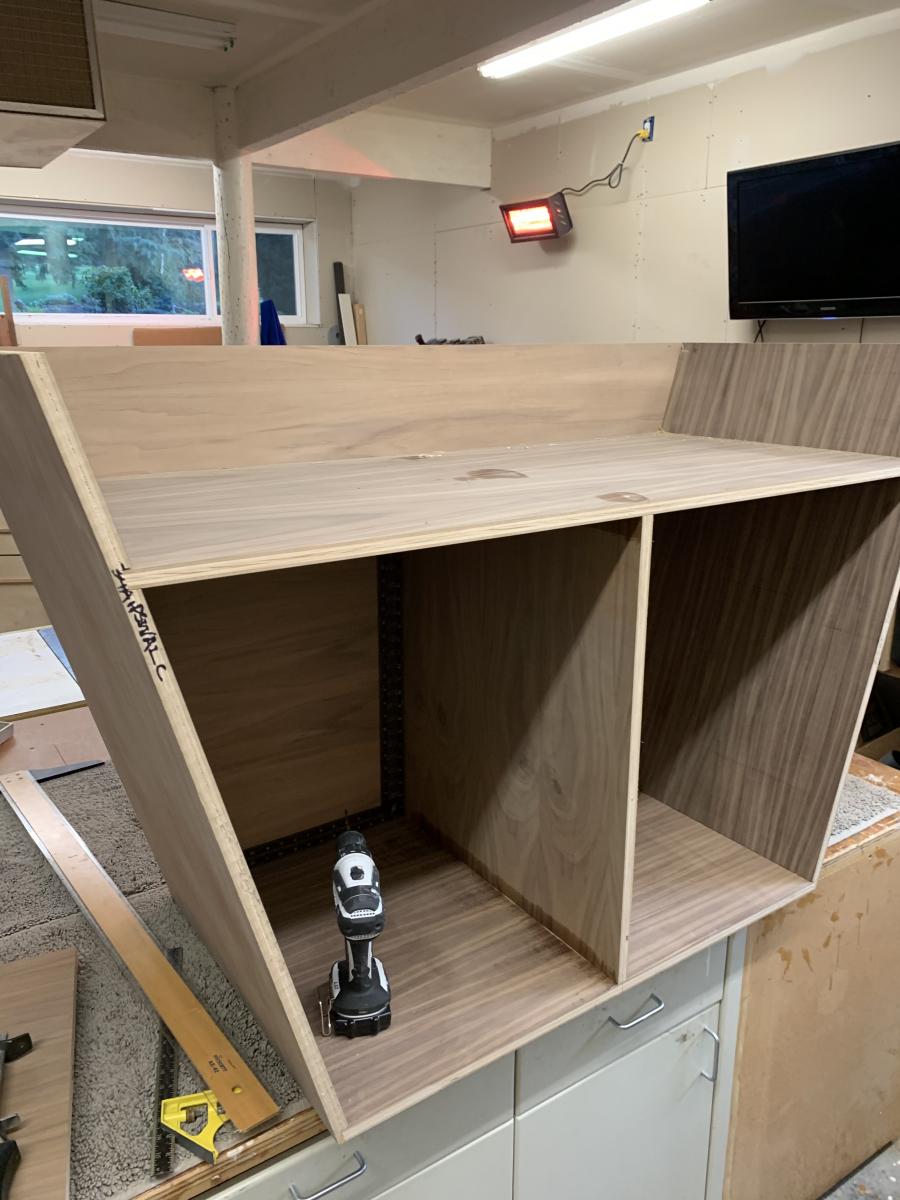

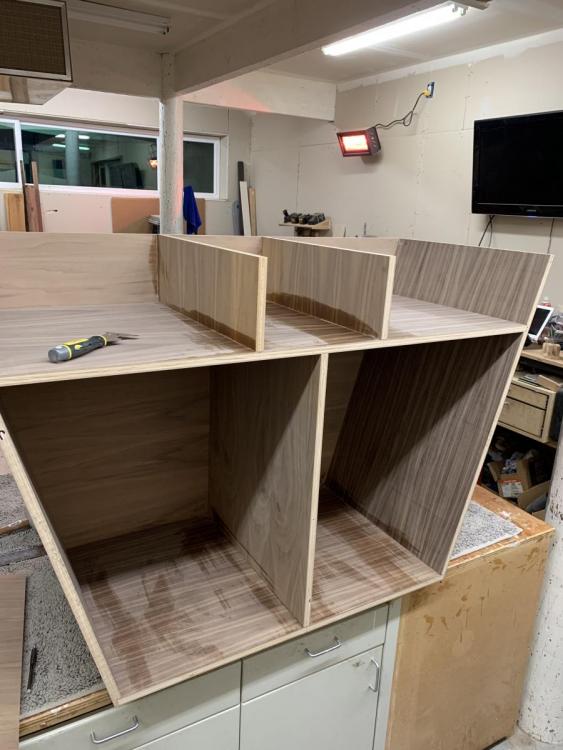

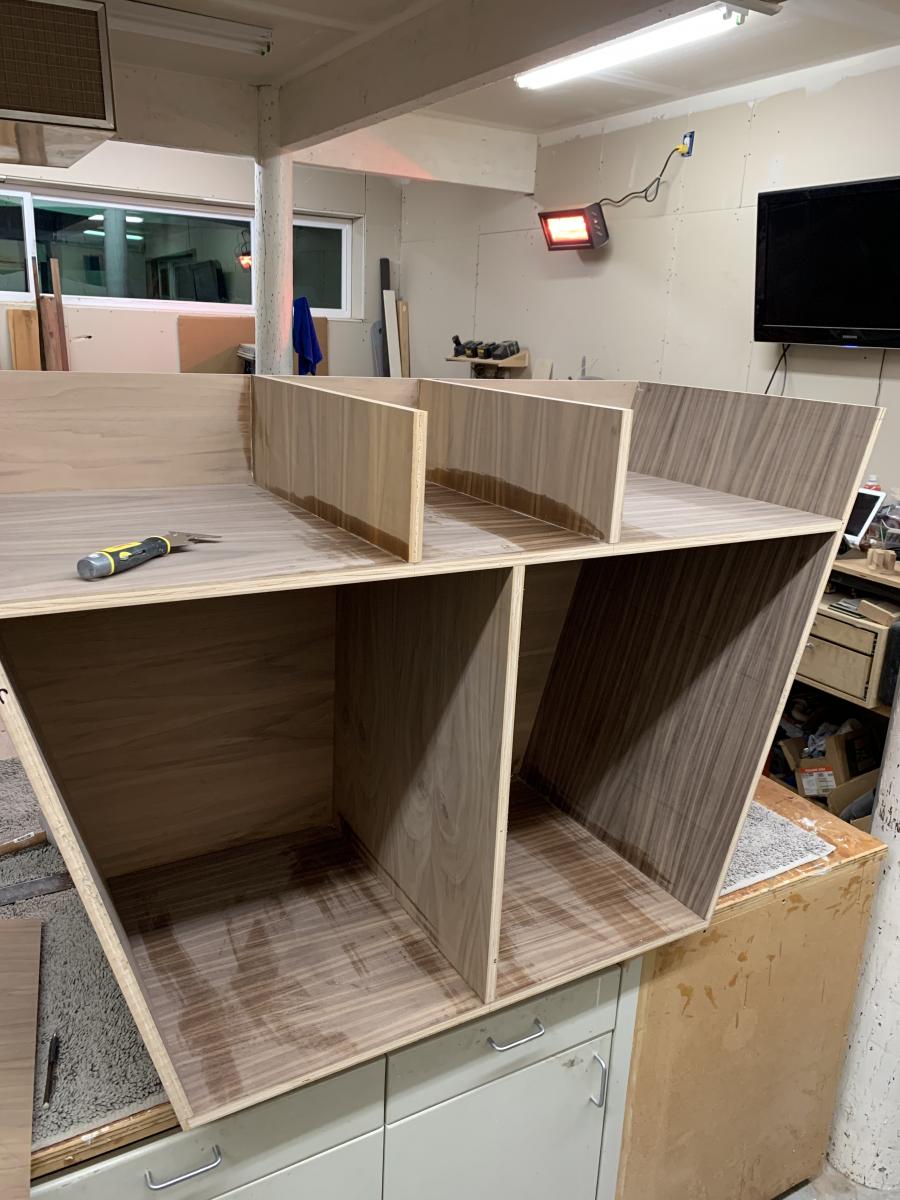

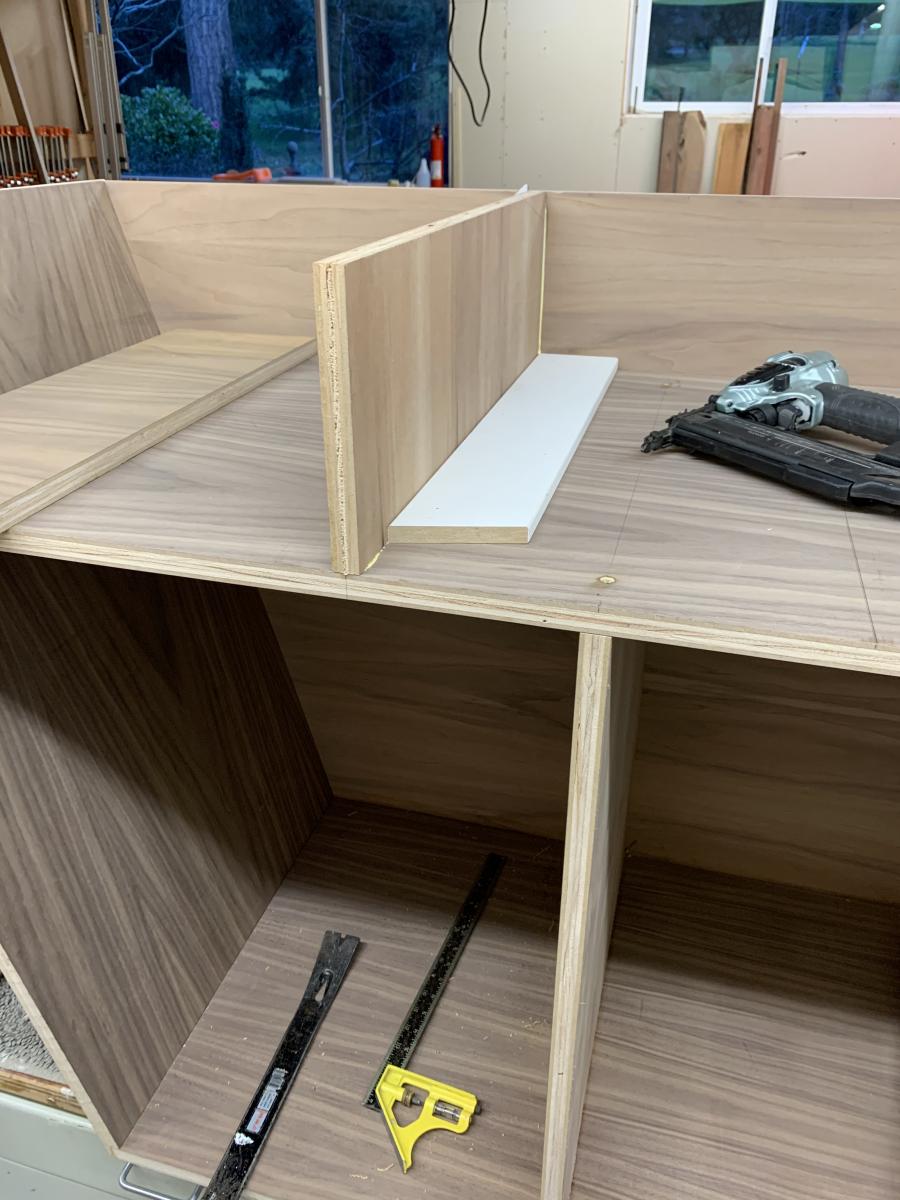

BTWheezy Posted March 13, 2020 Author Posted March 13, 2020 A mini-update for tonight. I just needed to get my mind off all the chaos going on the past few weeks. ? 1. Cut and trim the dividers for main compartment, and upper drawers. 2. Center in the cabinet, then glue and screw the main divider. 3. For upper drawer dividers, I tacked a guide of scrap wood to align the wood perfectly. 1

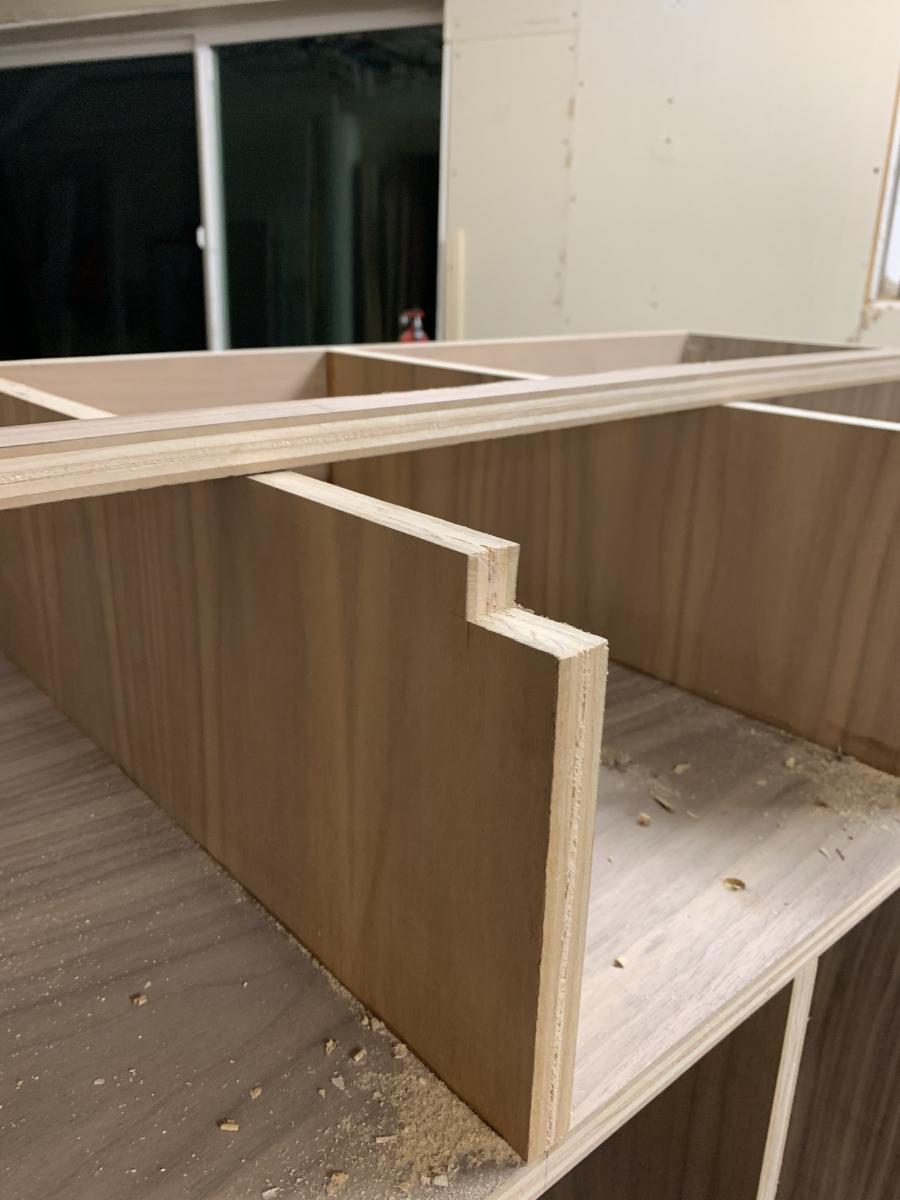

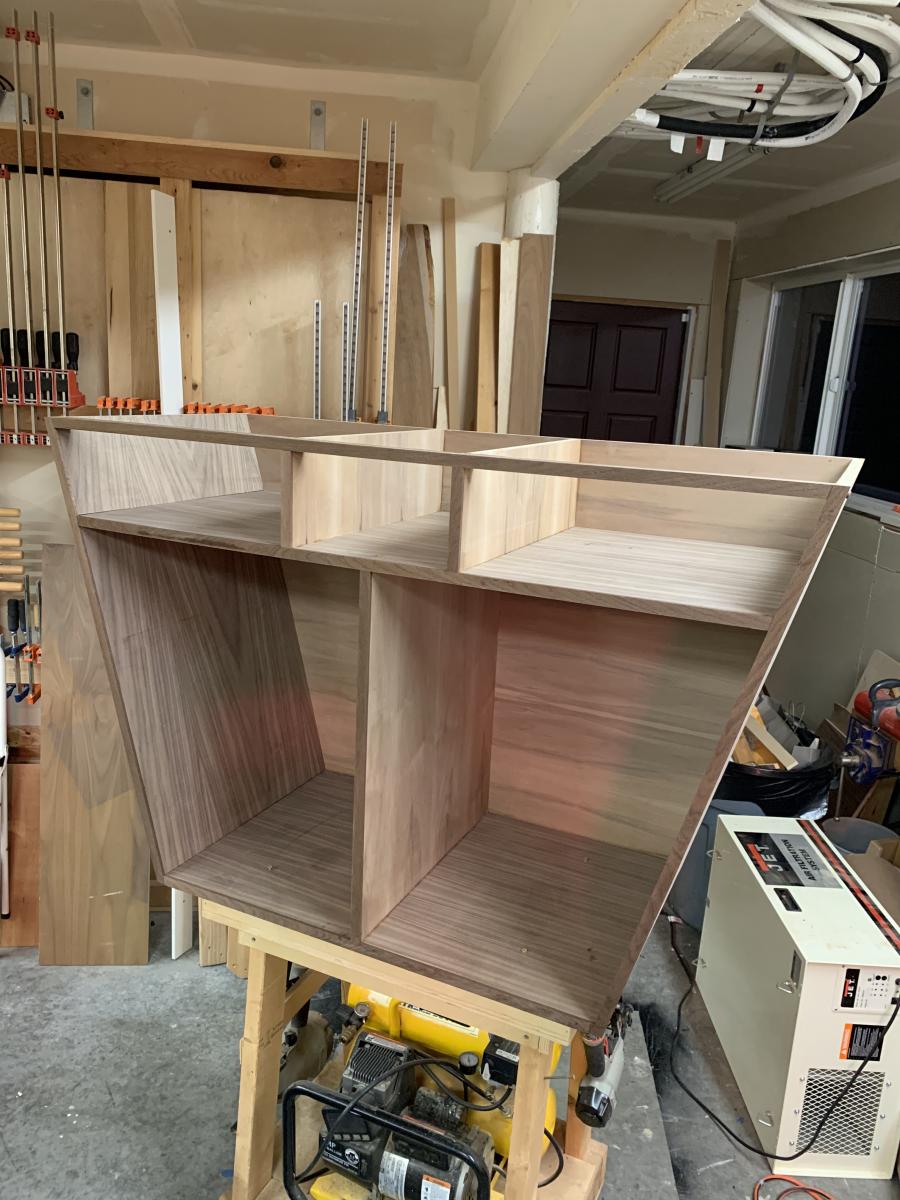

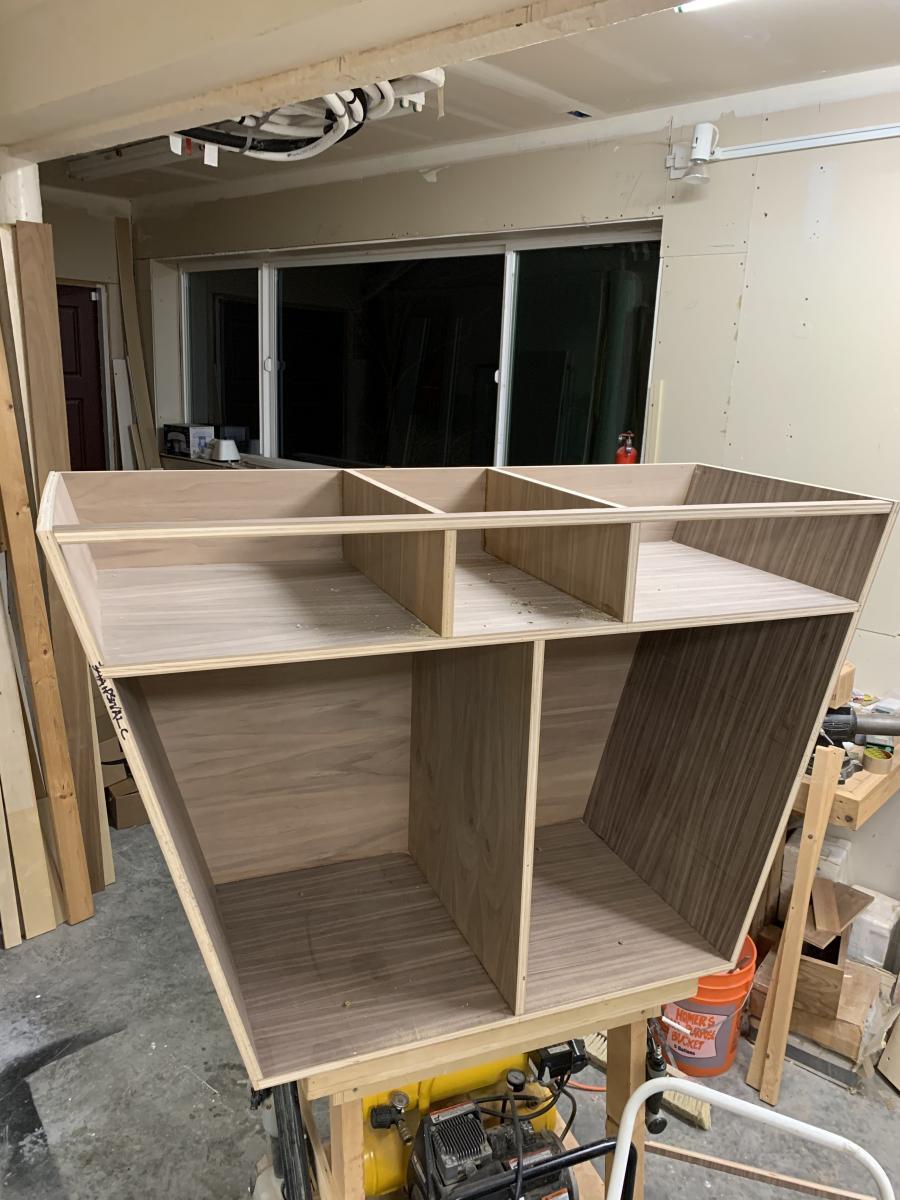

Popular Post BTWheezy Posted March 13, 2020 Author Popular Post Posted March 13, 2020 Mini update continued... 4. Upper dividers glued and screwed. 5. Notched the dividers to accommodate a support rail, and also to keep the lines consistent. 6. Good for tonight. 12

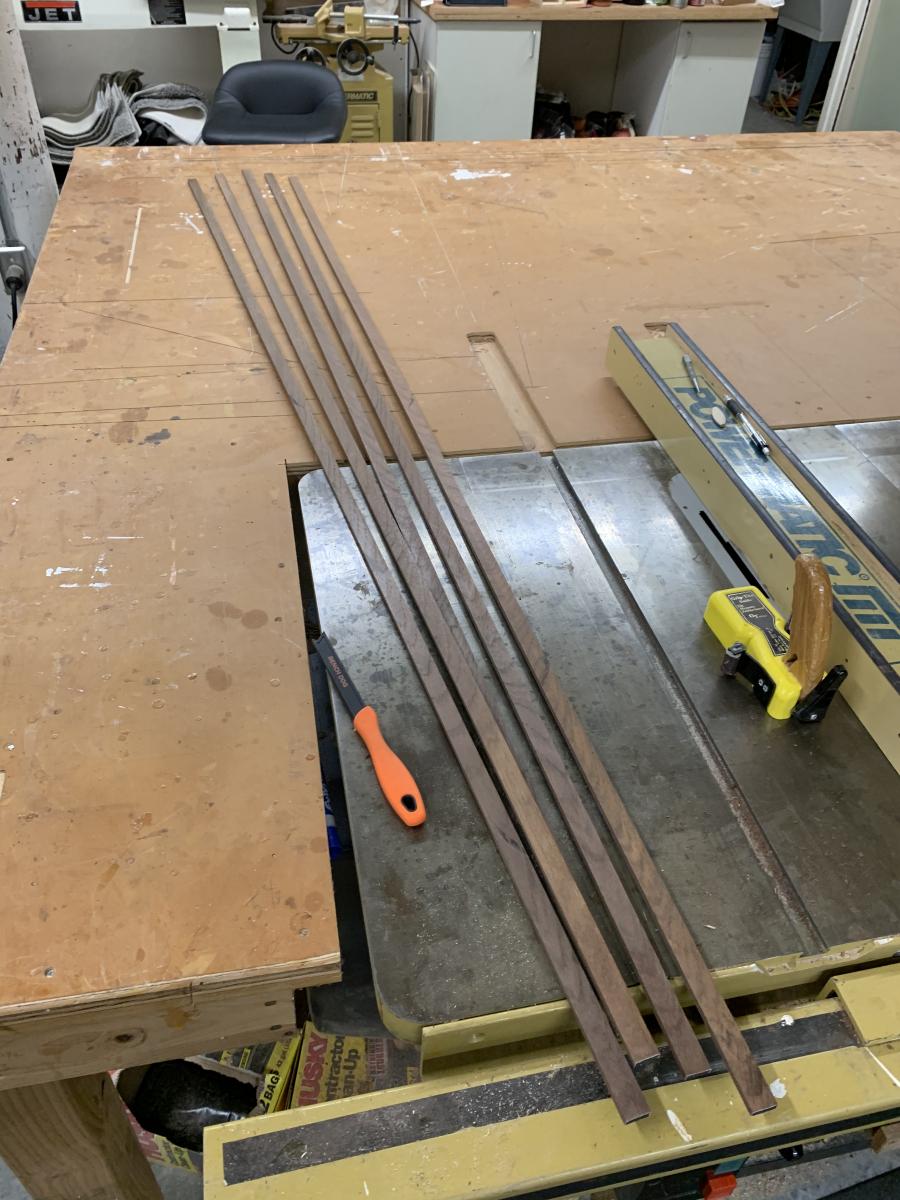

Popular Post BTWheezy Posted March 14, 2020 Author Popular Post Posted March 14, 2020 A little more progress this evening... 1. Cut strips for facing of plywood. 2. Dry fit all the pieces. 3. Glue and micro pin nails to attach. With Seattle pretty much on the “social distancing program” for everyone, I’m looking forward to lots of progress this weekend. 7

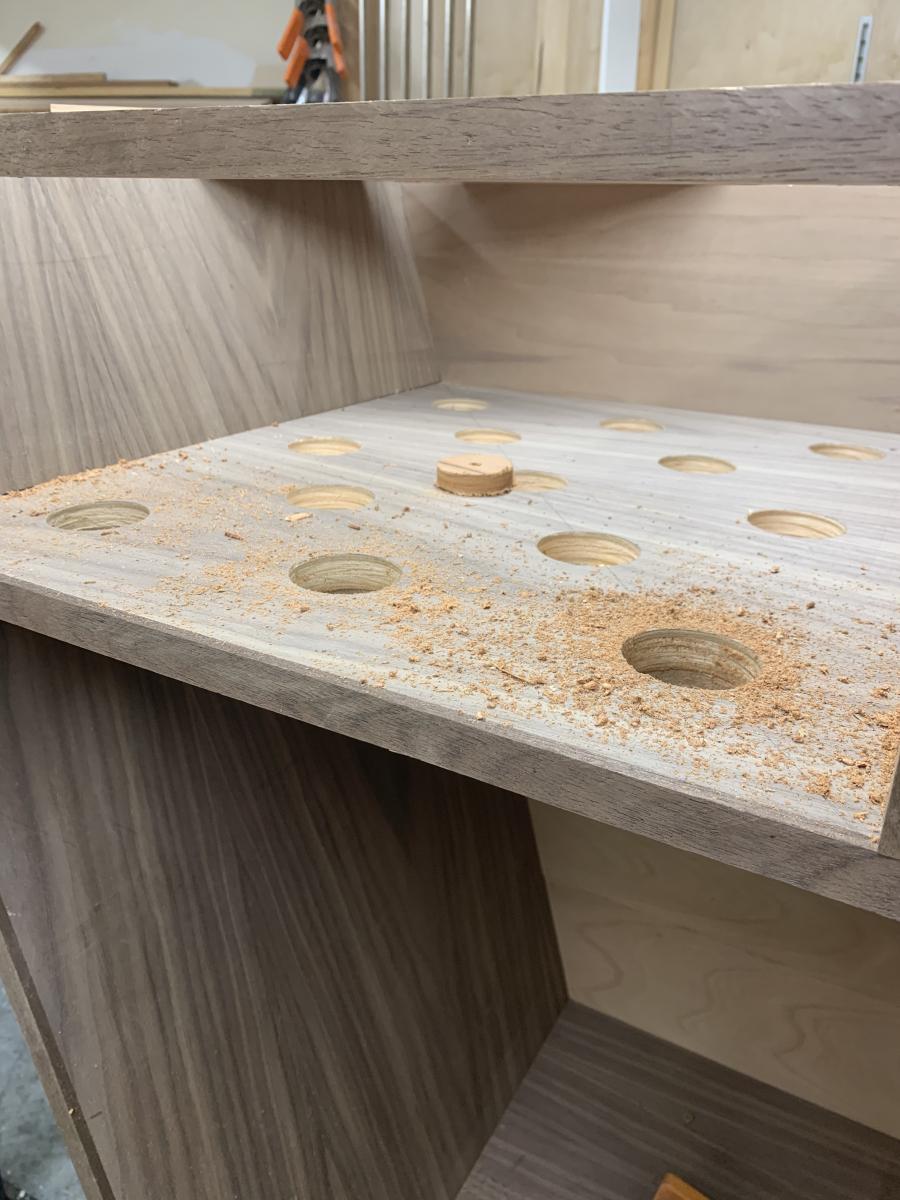

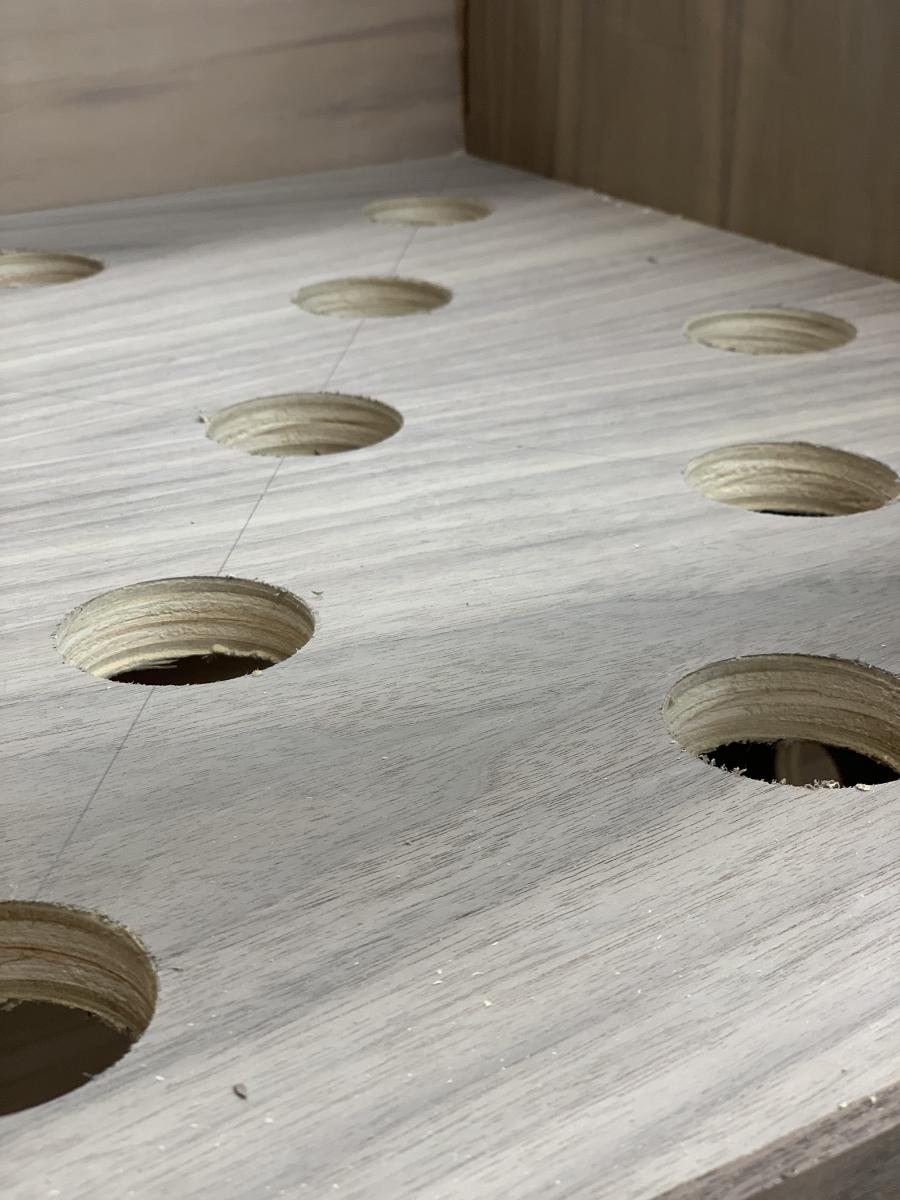

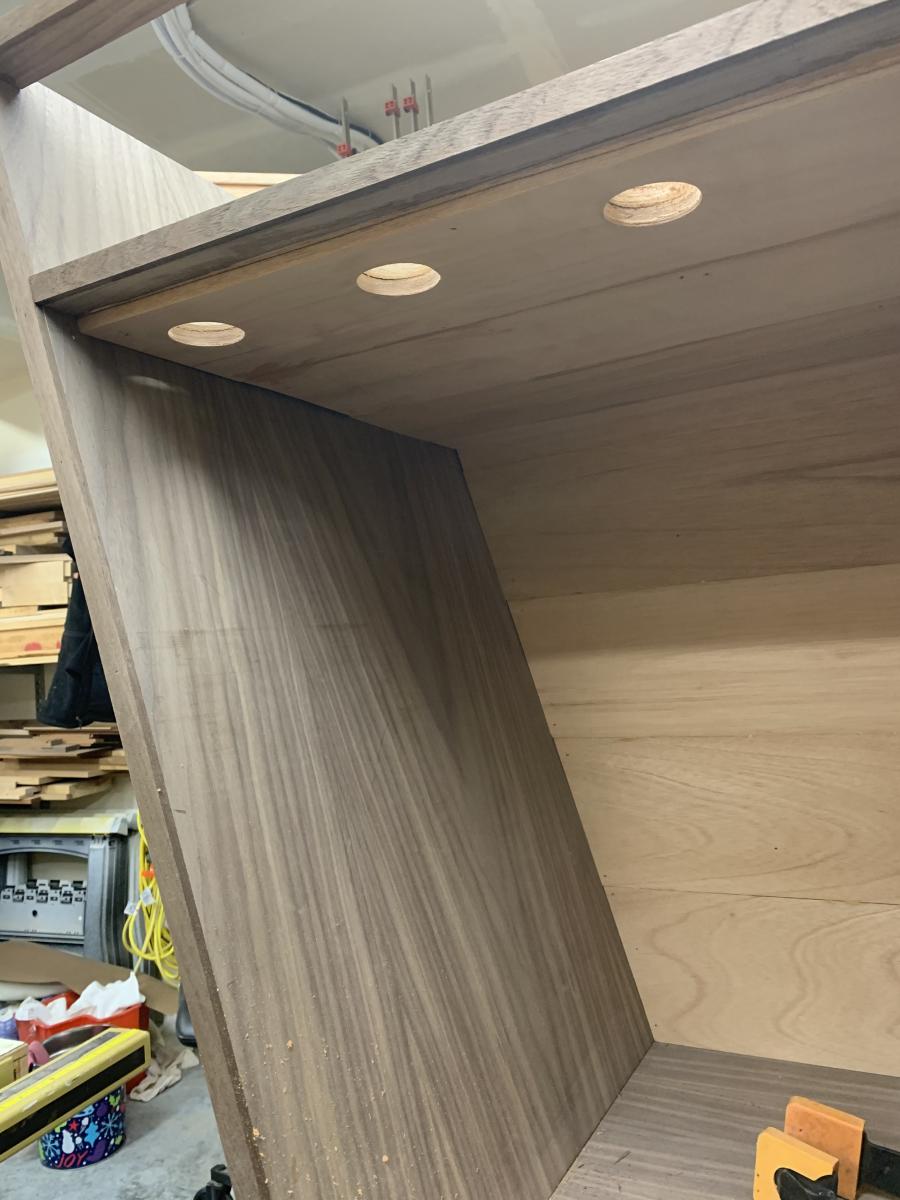

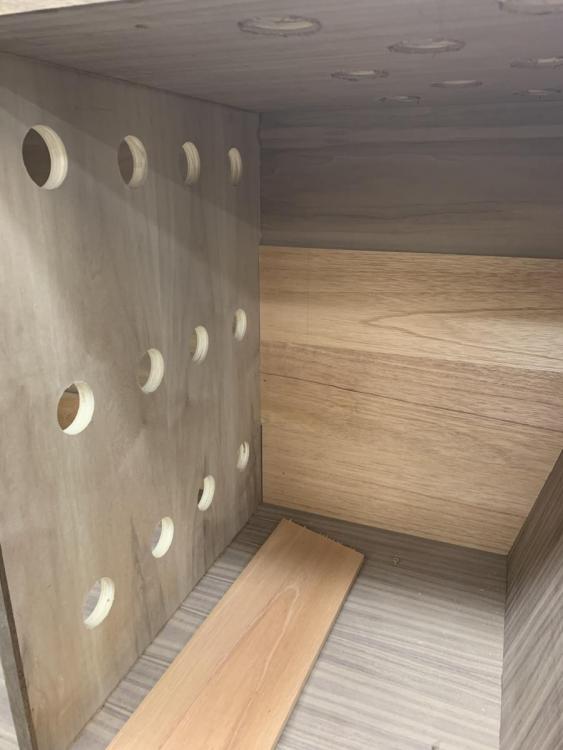

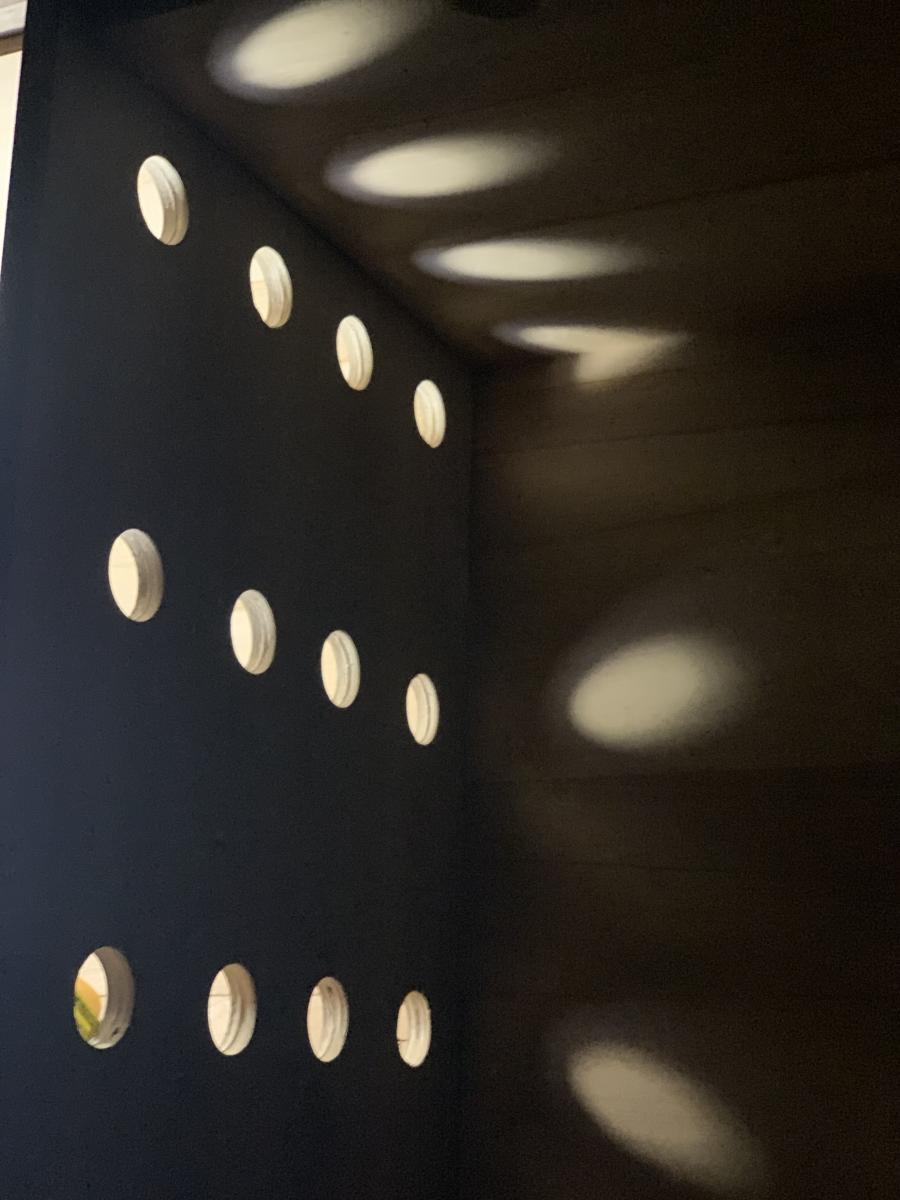

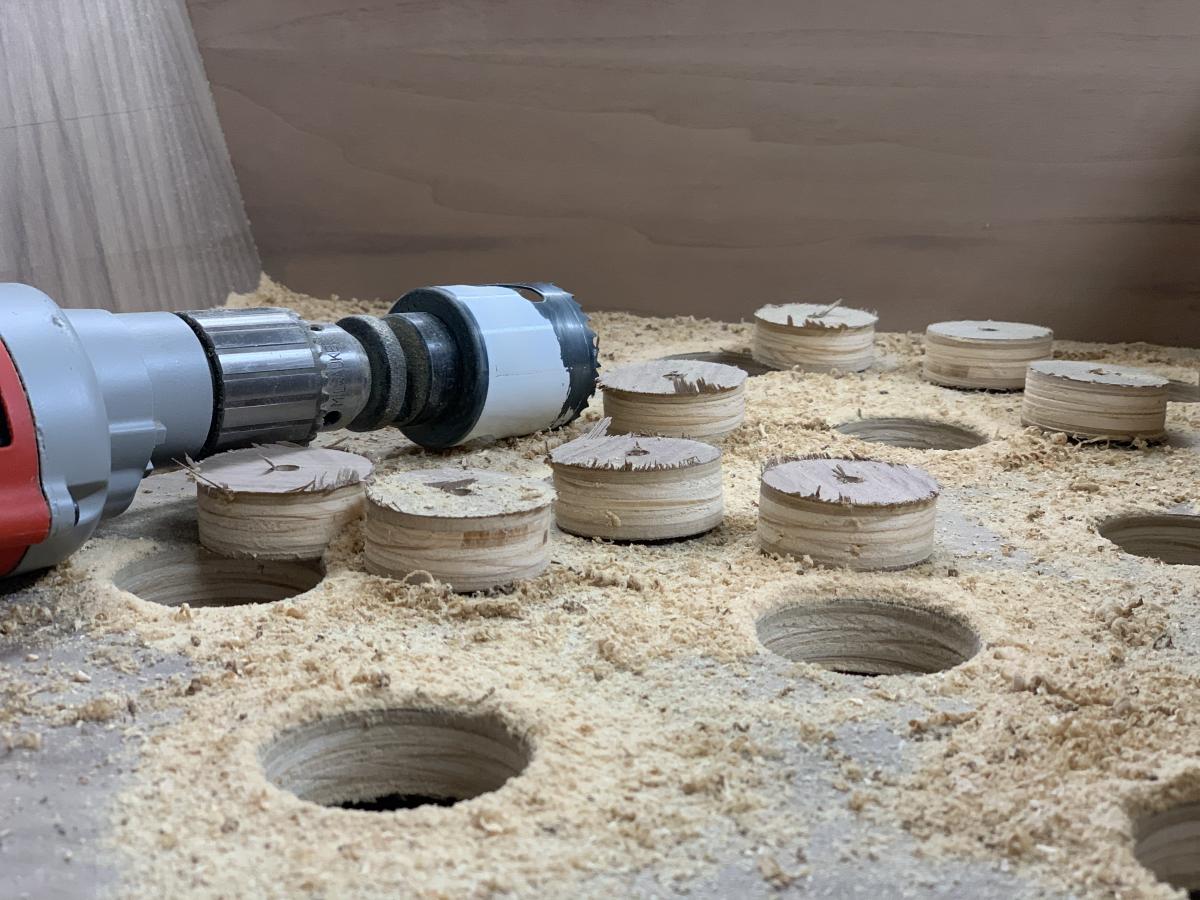

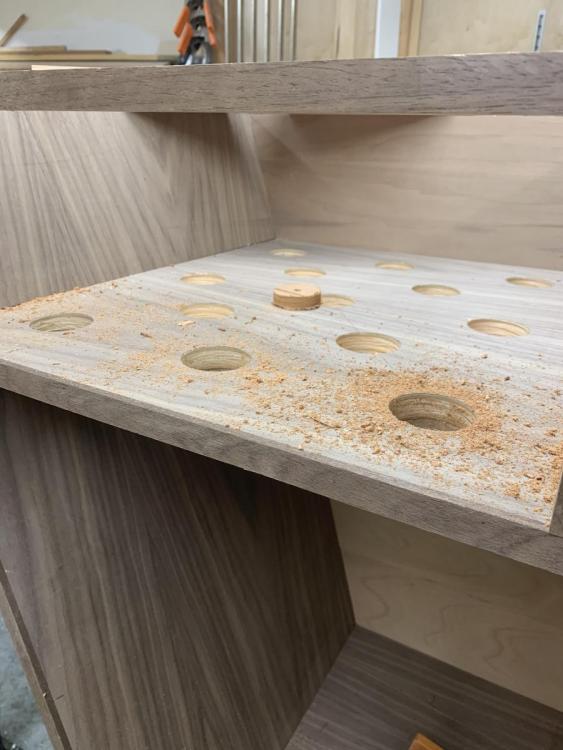

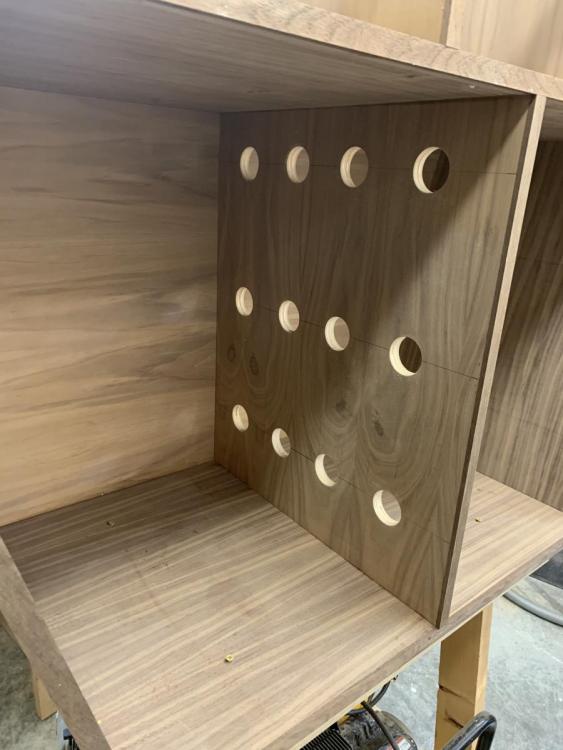

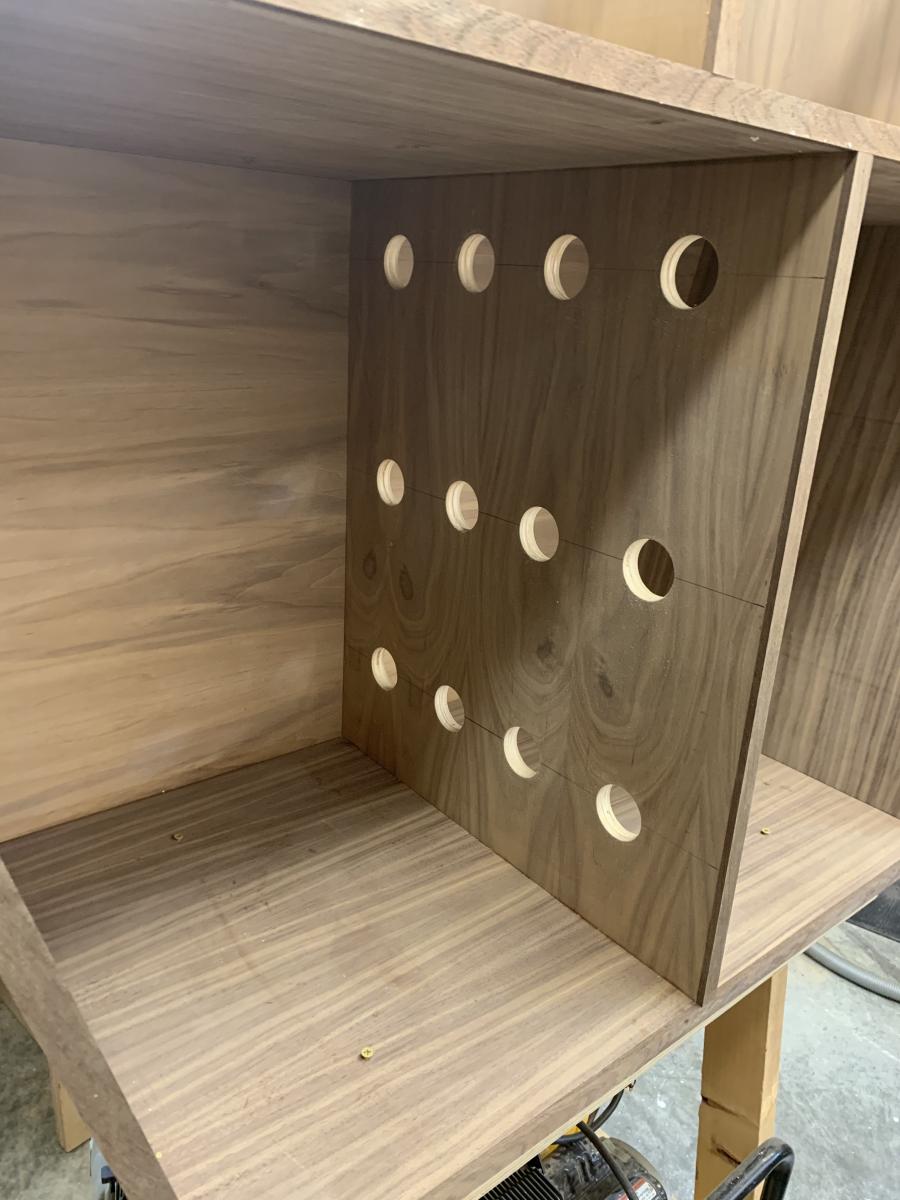

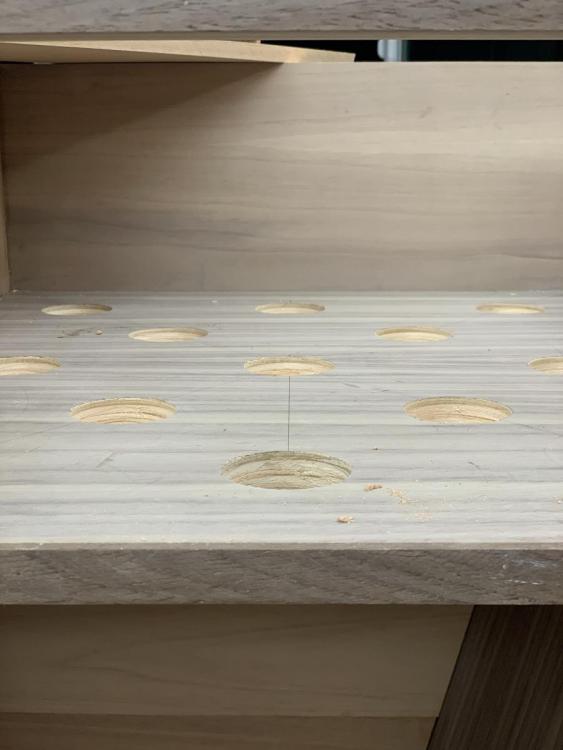

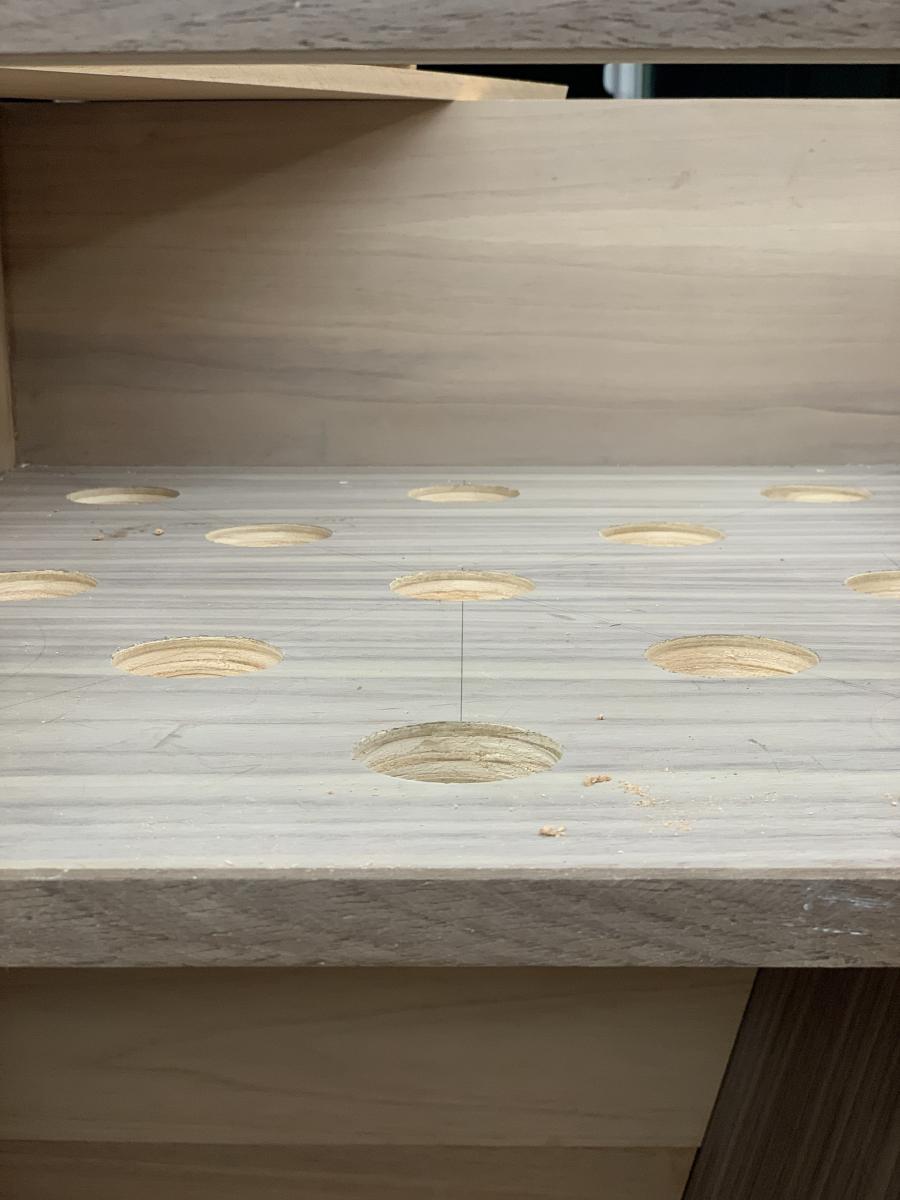

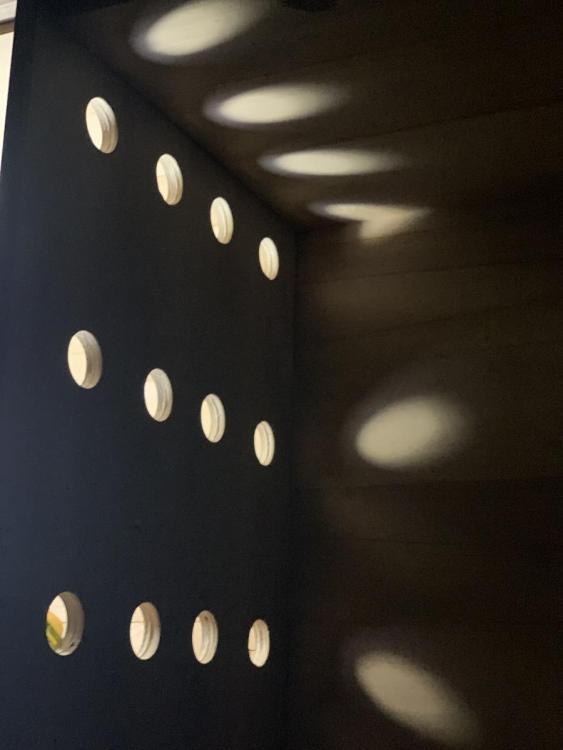

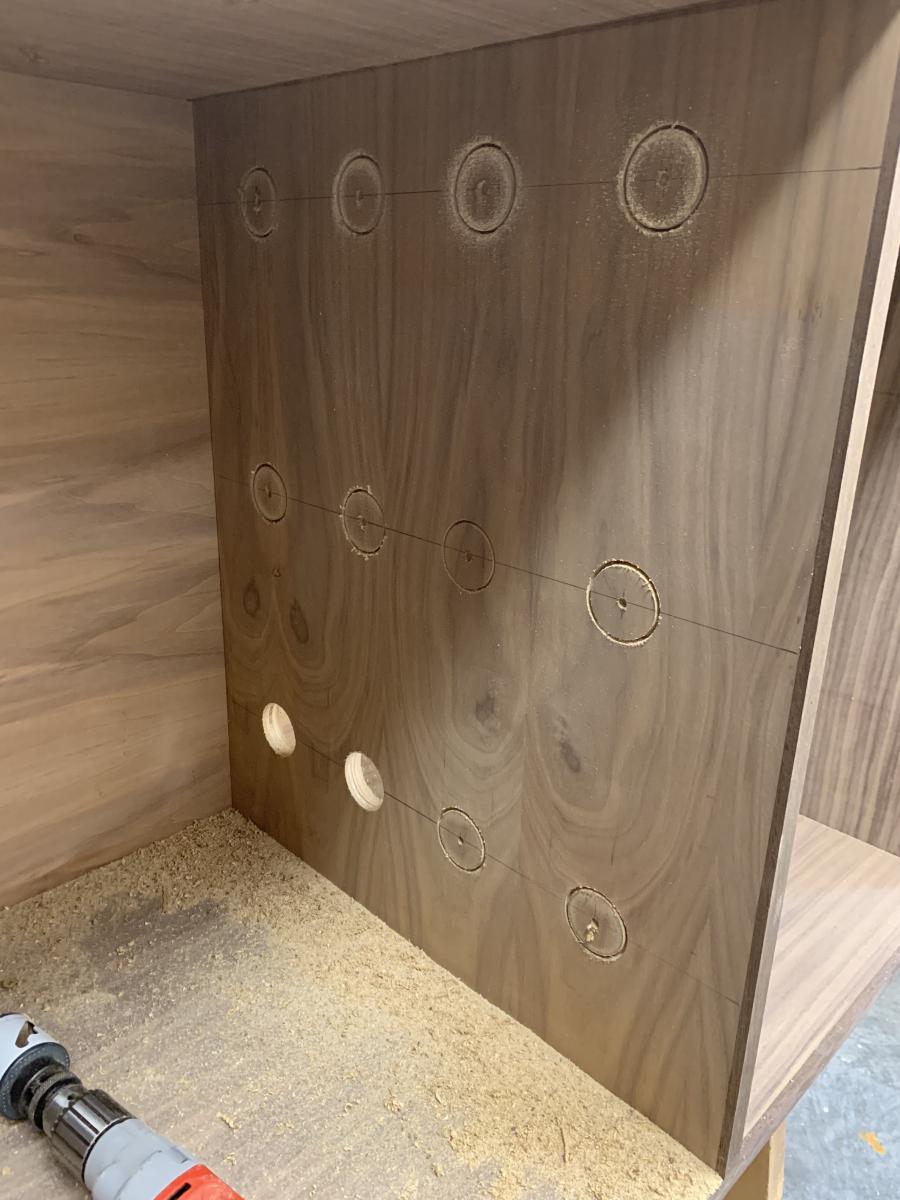

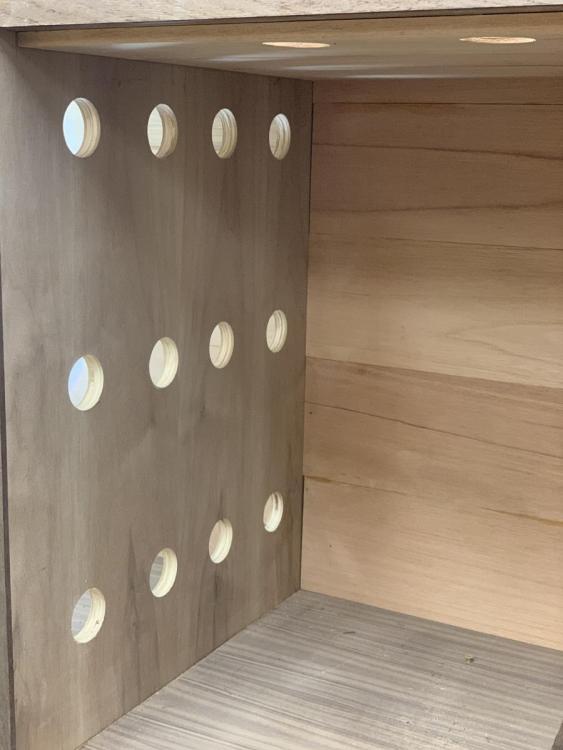

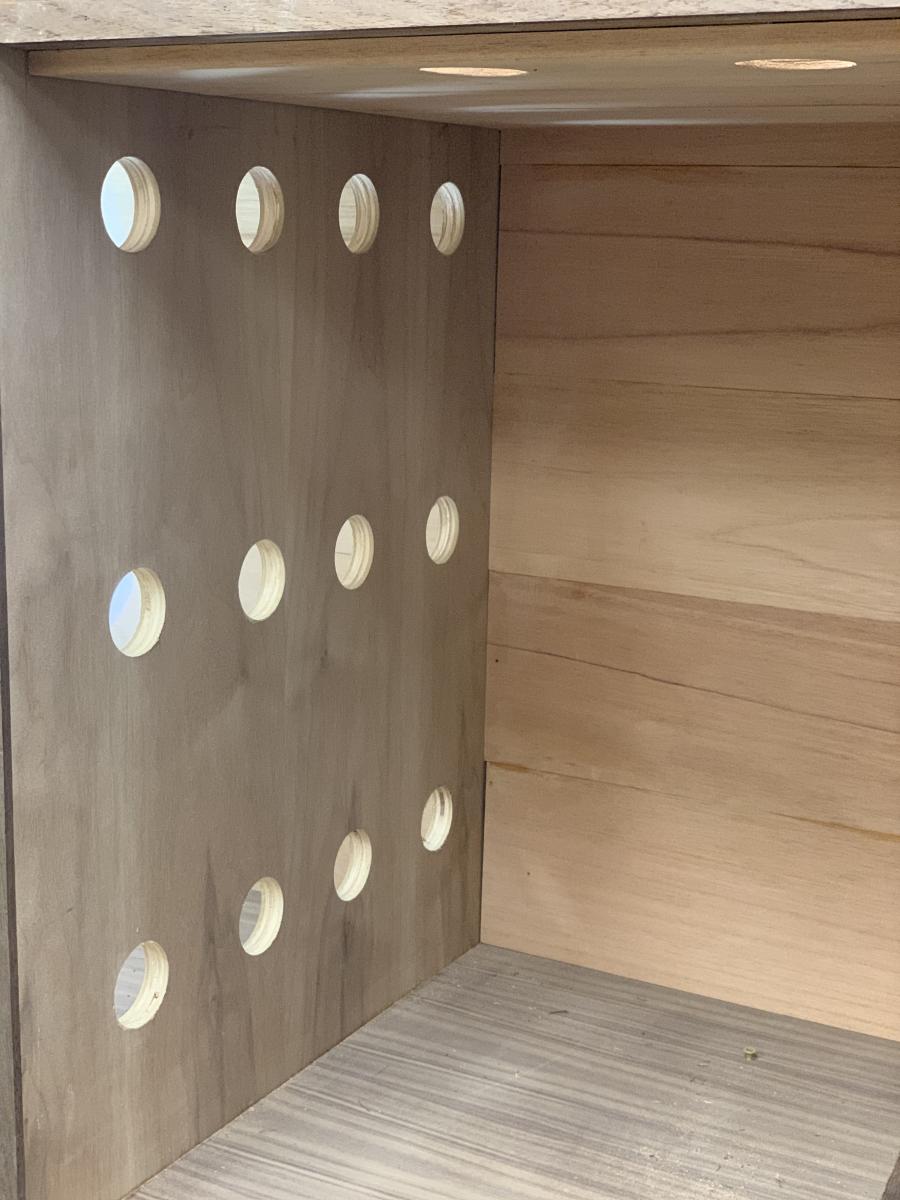

BTWheezy Posted March 15, 2020 Author Posted March 15, 2020 Not quite as much progress today, as I had to replace/rewire a couple key shop lights before getting started. Two fluorescent fixtures shat the bed within about an hour...what are the odds? Replaced with LED shop lights...I’m a convert. Energy efficient, great light, the fixtures barely weigh anything, and they say they’re good for 50,000 hours or something crazy like that. Soooooo anyway...today was cutting holes for airflow, and getting started on the Spanish cedar lining. 3
Popular Post BTWheezy Posted March 15, 2020 Author Popular Post Posted March 15, 2020 And final pics for today. Thanks for following along...hope it’s interesting! 9
ha_banos Posted March 15, 2020 Posted March 15, 2020 Thanks for the ongoing updates! Most interesting watching the development ☺️ Question - why did you drill the vent holes after assembly and not before?
BTWheezy Posted March 15, 2020 Author Posted March 15, 2020 6 hours ago, ha_banos said: Thanks for the ongoing updates! Most interesting watching the development ☺️ Question - why did you drill the vent holes after assembly and not before? A good question, and one that typifies how I do projects like this: the simple answer is I don’t draw specific plans ahead of time. ? I usually have a good idea of what I want to build, but I like to see how things shape up, and have the flexibility to change as I go. For example, I wasn’t sure if I wanted 2 shelves or 3 shelves, and therefore I didn’t know where to drill the holes. Same on the drawer compartments...the center drawer was a “late arrival” to the design. This will be an accessories drawer, and doesn’t need airflow. If I were doing production work like a cabinet maker, yes, those designs would be figured out, and tasks like holes would be done ahead of time.

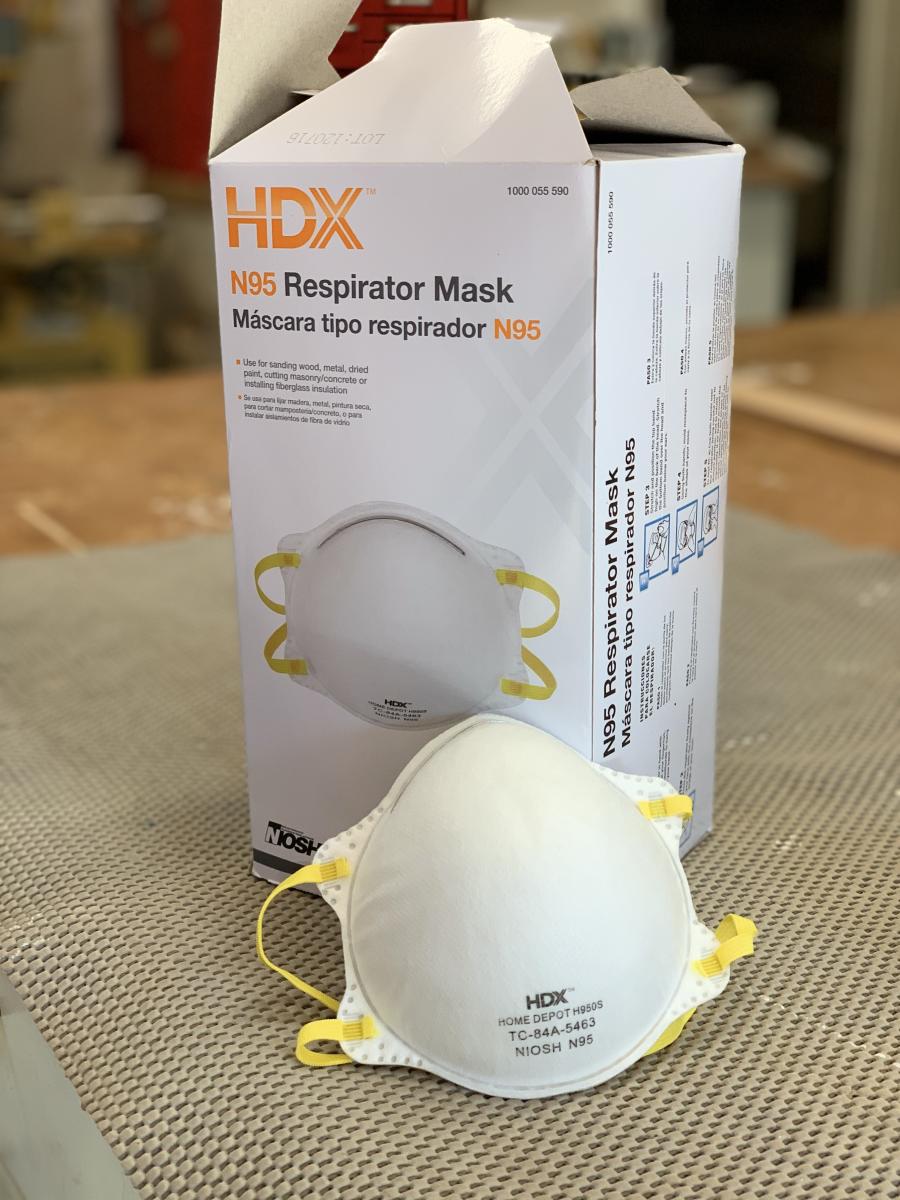

BTWheezy Posted March 15, 2020 Author Posted March 15, 2020 Much earlier start today than yesterday. I have NCAA basketball replays on in the background (VCU and Shaka Smart vs. Dayton)...great call by CBS...replay fantastic games from years gone by, until society starts moving again. ? First, I dipped into our retirement fund... 2
