My Raspberry Pi embedded coolidor

[Fairlight]

Hello people!

Below you will find information about a small project I completed. The whole think begun when I thought that it would be nice if I had temperature and humidity monitoring of my coolidor online and be able to access them from anywhere. When I started I only knew some basic things about all this but upon completion I ended up knowing basic python programming and some linux as well.

So the whole idea here is that a small and inexpensive computer (raspberry pi) is hooked to the coolidor and performs two basic functions: Collecting and uploading humidity and temperature in real time and controlling the coolidor’s fans.

1) Humidity and temperature logging and uploading.

To collect the data a humidity/temperature sensor is used called AM2303. Basically it is a DHT22 sensor prewired and featuring a plastic casing. If you’re interested you can read the manufacturer’s info here:

http://www.aosong.com/asp_bin/Products/en/AM2303.pdf

Here you can see it temporarily attached to the rpi

To be completely honest with you it’s not the perfect sensor. However, I truly believe that it’s far better than any commercial cigar hygrometer I’ve used in the past. You can see some serious testing of the sensor here (along with some useful information about sensors in general):

http://www.kandrsmith.org/RJS/Misc/Hygrometers/DHT22/calib_dht22_v1.html

There are currently two ready python libraries for this sensor (for Arduino as well) so it’s quite easy to get recordings from it. After I managed to read the sensor I did a 3 point calibration using bovedas and a tupperwear. This showed that an offset of 1.4% RH must be applied to the sensor data in order to get accurate humidity measurements. Fixing that takes about 1 second in software in contrast to trying to calibrate horrible digital hygrometers used for cigars.

Of course if someone is concerned about accuracy calibration needs to be repeated in a year due to sensor drift. Me personally, I am much more concerned about fluctuations and stability rather than absolute accuracy.

When all these were done I wrote a small python script that collects sensor data (2 measurements/min) and uploads then in a free to use API called plotly. The same scripts also plots the data. You can see the data yourself in real time here (that's obviously the whole point here):

https://plot.ly/89/~Fairlight/

The only problem now is that data collecting and uploading are done with the same script which means that if for a reason upload fails then logging stops as well. This can be solved by using offline logging and storing the data locally THEN uploading. To be honest I don’t know if I will bother to implement something like this.

2) Fan control

When I initially installed fans in my coolidor, years ago, I didn’t have any guidance on how often they should be switched on in relation to the amount of air they move. Thanks to pigfish (god thank you!) I finally found out that if for 22cfm there should be a 25% duty cycle. I bought a 7.5V adapter for the fans which produces an airflow of around 20cfm. But then I wanted to get rid of the horrible digital timers. Plus there was no way I could program 1min on 4 off in these. They are also very prone to failure, I ve already changed 3 of them. Since the rpi was going to get hooked anyway I had the idea of making an electronic switch for the fans based on a 2n2222 transistor. This transistors basically switches an external 7.5V supply to the fans on and off using an input for rpi’s GPIO.The circuit is very similar to this. The main differences is that instead of a motor (M1) here we have the coolidor’s fans and there is no R1 resistance.

I made a small circuit using perfboard and glued it with hot glue above one of the fans inside the coolidor.

A very simple python script switches the fans on and off. Because the 2 scipts (data collecting and uploading and fan control) must continuously run (specially the fan one) a program called upstart monitors the state of the script and if they fail it reboots them automatically.

I then attached the rpi to the coolidor using Velcro (its completely removable). I routed the cables through the plastic drain plug. The red/black cable you see here is the external 7.5V supply for the fans. The black bundle contains 5 cables, 3 for the sensor and 2 for the switching circuit board.

I also placed two leds directly to the rpi. A blue one that remains lit when the fans are on and a red one that blinks for a second every time a measurement is uploaded. Obviously there is a also a cheap wi fi usb adapter hooked to the thing.

Cost: Nothing really. The cost of the sensor was 4 usd and as of the cost of the circuit board I don’t really know. It must be less than 1 usd. I already had a rpi doing nothing so if you don’t have one that will cost you around 35usd. However it can be done with much cheaper hardware.

Difficulty: For me it was challenging but only because I was a complete beginner in anything. It took me about two months, working it a bit on weekends. However if you already know BASIC python programming and linux it can be done in a matter of days if not hours. I can also give you my horrible code if you wish.

That’s it. Hope you like it. Next project is probably a freezador. The weather here in Greece is brutal on cigars.

[planetary]

Very interesting! It might be good to put the sensor into the ambient environment (where you have a control temp + hygrometer, which you trust) to see how long it takes to notice, and stabilize on the new readings -- and also how far off they are from the control.

The stable temperature is impressive! You must have it situated in a good spot in the house.

[Fairlight]

Oh I made that and a whole bunch of other interesting experiments.

The most interesting among these, I guess they were the ones in which I was measuring the time the coolidor takes to recover from an opening. I then varied the 'open time' to see how it impacts the time it needs to recover.

With a 'normal' opening this time is around 40 mins.

I am using 3 hygrometers (with temperature) along the am2303. Trust me the am2303 is way better. It is fast and sensitive especially when compared to comercial cigar hygrometers.

Yes the temp is stable now but its 23c (73,4F). I also tested it when central heating was on and it wasn't that stable. You could actually see the daily fluctuation caused by the central heating on the data, it was pretty consistent. A cool thing to see, not so cool for the cigars though.

[PigFish]

Congratulations mate... good job!

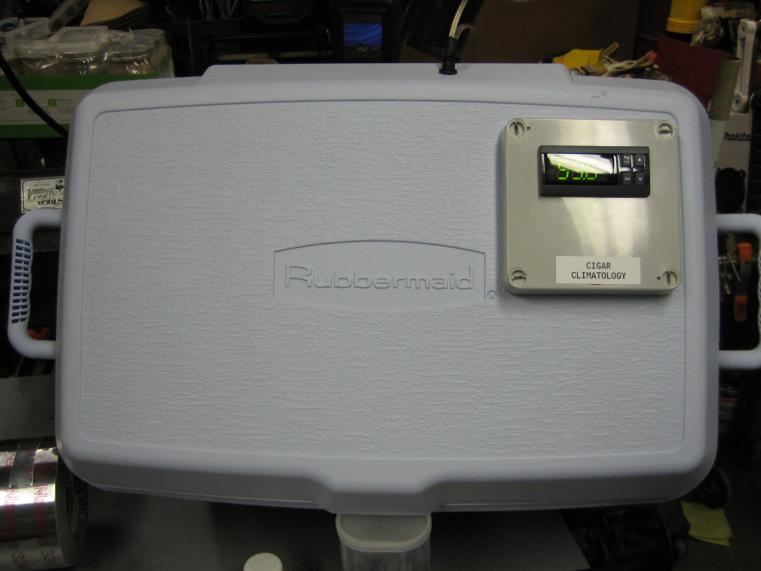

I built a similar unit once, just to test ideas in a passive insulated cooler. I have since tossed the cooler, but I did save some pictures of the device. This pic is from 2012.

The one thing that hung me up on this project was my desire to actively humidify it. I live in a largely dry environment. It cause me to create what I called the desiccant humidifier. This is a humidification appliance with nominally wet desiccant products. It is a powered appliance connected to the controller and set to humidify when the rH declined below the set point. Of course it could not hold a lot of water, or the equilibrium (normal evaporation) process would take the humidor up in rH incidentally over time. But, once the desiccant was pretty much equalized with say a 60rH environment, you could add 10ml or so of water to it and that excess would be used to keep balance in the humidor when the appliance was under power. Otherwise since the desiccant was largely isolated it would not typically run up the rH as the water would tend to remained locked up in the appliance.

I chose an approach where everything was built into the lid and just moved out of the way when opened.

Good job mate! Cheers! -Piggy

[planetary]

40 minutes -- interesting!

I wonder what it would take to get the Rpi to SMS you alerts when you have an excursion beyond acceptable parameters. Buddy of mine who's got an Arduino setup monitoring his homebrew made that work. Saved his bacon one time, when he was on vacation, and a power outage wreaked havoc with the internal house temperature, and he was able to have a neighbor come over and reset his AC.

[PigFish]

In used to do a lot of comparisons between active humidor products to passive ones. Most of this stuff is obsolete today, I don't even recall what I was testing and why, but it does help to demonstrate the difference. Here is one from the file cabinet!

Cheers.

[Fairlight]

40 minutes -- interesting!

I wonder what it would take to get the Rpi to SMS you alerts when you have an excursion beyond acceptable parameters. Buddy of mine who's got an Arduino setup monitoring his homebrew made that work. Saved his bacon one time, when he was on vacation, and a power outage wreaked havoc with the internal house temperature, and he was able to have a neighbor come over and reset his AC.

I am sure a SMS notification is feasible, a simple google search revealed at least 3 different ways to do that. The Rpi is much more powerful than the arduino. I guess its not really necessary because you can access the data from a mobile anyway but I may do it just for fun when I have time. You can also make an android widget if you 're capable.

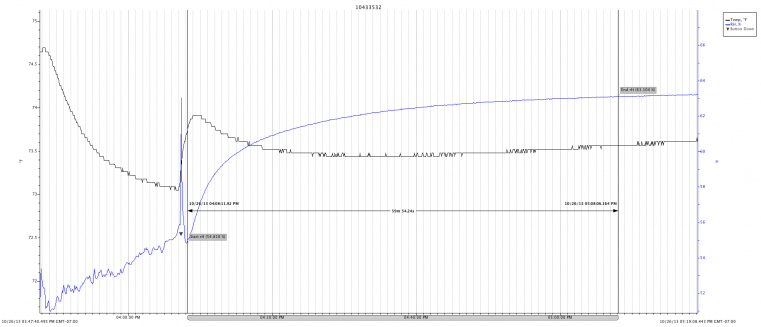

I have an old graph that it might interest you. This is during calibration using a tuperware and bovedas. What happens here is that the system is stabilized at 75, I open the tupperwear, replace the bovedas with 69 and close it. You can see how much time it takes to stabilize at the new level. Because at the time I hadn't put timestamps yet what you see on the x-axis is measurements. Each measurement is app. 30secs. Therefore it takes about 17,4mins (58 measurements).
