daboose Posted January 31, 2010 Share Posted January 31, 2010 I’m going down that slippery slope real fast. I’ve max’ed out the EdgeStar and can now only expand into the garage where the ambient temperature can be 30*F-95*F. I’m thinking of going the “freezerdor” route but this project will require a heating source for the colder months here in North Carolina. Here's the plan for now... A two stage temp controller (Ranco) Two heating pads ("Brewer's Edge Space Heater") 17 cu.ft. manual frost freezer RH will be managed with beads Active humidification (only if necessary) Fans will be directed on the evaporator coils (which run through the shelves). This 'fan trick' is successfully used on smaller non-thermoelectrics Storage only for boxes and cabs The two stage controller will come in handy during the fall and spring; otherwise it will be full bore heat in the winter and cool in the summer. It's still on the drawing board. Any input is welcomed. Thanks. Link to comment Share on other sites More sharing options...
samb Posted January 31, 2010 Share Posted January 31, 2010 Sounds like a pretty intense project to tackle. Sorry, but Im of no use, go figure. Link to comment Share on other sites More sharing options...
Ellery Posted January 31, 2010 Share Posted January 31, 2010 Please post your progress. I have an empty freezer that I was interested in converting, and would really like to see how your turns out. I have no real technical input or knowledge no how to go about this, but it sounds like you have a great plan Link to comment Share on other sites More sharing options...
daboose Posted March 18, 2011 Author Share Posted March 18, 2011 It’s be almost a year since but “The Vault” is now operational. It's been up and running for about 2 months. Thanks to everyone for posting their humidor experiences. One thing I learned right off the bat ... GET A DATA LOGGER! Thank you Piggy! The data kept me objective. I have copious amounts of data experimenting with two different thermo-electric wine coolers over the past year. Since each cooler was set up differently and cigars stored in various ways, the data guided me which way to proceed with this project in order to achieve the desired goals for temperature and a steady RH. As summer approaches, I'll be watching it very closely with my trusty data logger. And of course, the true test is how they smoke...I have not yet been disappointed. I'll update the attached PDF as the summer ensues. There's a lot of empty space in The Vault. Lisa has been put on notice. The_Vault.pdf (PDF corrected to reflect correct amount of RH beads in a container.) 2 Link to comment Share on other sites More sharing options...
BossHogg Posted March 18, 2011 Share Posted March 18, 2011 Dude that thing is cool! You did a good job Link to comment Share on other sites More sharing options...
bob25 Posted March 18, 2011 Share Posted March 18, 2011 Impressive work man! That is indeed a really cool "humidor". Link to comment Share on other sites More sharing options...
Ellery Posted March 18, 2011 Share Posted March 18, 2011 wow great job Link to comment Share on other sites More sharing options...
Puros Y Vino Posted March 18, 2011 Share Posted March 18, 2011 Nice work daboose!! Link to comment Share on other sites More sharing options...
#2 man Posted March 19, 2011 Share Posted March 19, 2011 Nice ! Keep us updated Link to comment Share on other sites More sharing options...
CanuckSARTech Posted March 19, 2011 Share Posted March 19, 2011 Very good work, daboose. I've saved your PDF in my documents files - an invaluable resource for all to have. Cheers. Link to comment Share on other sites More sharing options...
stargazer14 Posted March 22, 2011 Share Posted March 22, 2011 nice post! Link to comment Share on other sites More sharing options...
beamer Posted March 22, 2011 Share Posted March 22, 2011 Impressive set up. Makes my 28 bottle Vinotemp look downright puny. :-) Link to comment Share on other sites More sharing options...
Dbone Posted March 23, 2011 Share Posted March 23, 2011 Bravo mah man Link to comment Share on other sites More sharing options...
stephenbj Posted April 7, 2011 Share Posted April 7, 2011 Good job, looks cool!!!! Was wondering how much did the whole set-up costs you and how many man hours did you put into building this beauty? Link to comment Share on other sites More sharing options...
daboose Posted April 8, 2011 Author Share Posted April 8, 2011 Oh yeah. The cost! The cost per cubic foot of The Vault is less than half of your basic thermo-electric wine cooler and even the Igloo Desktop. Mind you that I did not employ active electronic RH management but used RH beads in each airtight container. I can open The Vault and RH is not directly disturbed. The temperature recovers very quickly. The Vault ($56/cu.ft.) Temp control Airtight containers (for cigar storage) RH beads Wine Cooler, Edgestar 28 bottle ($137/cu.ft) Temp Control RH beads Cigar boxes sealed & stack on wired shelves (beads enclosed) Wine Cooler, Edgestar 28 bottle ($228/cu.ft) Temp Control RH beads Chasidor custom cedar drawers/shelves Igloo 40 Quart Cool Chill ($134/cu.ft.) Temp Control RH Beads Cedar Costs for the The Vault could have been further reduced if a chest type freezer was used instead of an upright. The heat of the summer is around the corner. More temp/RH data will be posted. Thanks everyone for your comments. Link to comment Share on other sites More sharing options...
Puros Y Vino Posted June 9, 2011 Share Posted June 9, 2011 It�s be almost a year since but �The Vault� is now operational. It's been up and running for about 2 months. Thanks to everyone for posting their humidor experiences. One thing I learned right off the bat ... GET A DATA LOGGER! Thank you Piggy! The data kept me objective. I have copious amounts of data experimenting with two different thermo-electric wine coolers over the past year. Since each cooler was set up differently and cigars stored in various ways, the data guided me which way to proceed with this project in order to achieve the desired goals for temperature and a steady RH. As summer approaches, I'll be watching it very closely with my trusty data logger. And of course, the true test is how they smoke...I have not yet been disappointed. I'll update the attached PDF as the summer ensues. There's a lot of empty space in The Vault. Lisa has been put on notice. The_Vault.pdf (PDF corrected to reflect correct amount of RH beads in a container.) Daboose. How's this running so far? I've got me some high temps to deal with. I've looked into converting a wine cooler and getting custom shelves but it seems all the models that are compatable are not for sale any longer or can't be found here. I downloaded your PDF a while ago and gave it a second look and thought...why not do this?!? It seems to be a sane solution. Isolate your cigars in a humidified environment and then place them in a cooler one ( a fridge). Anyone else try this? Link to comment Share on other sites More sharing options...
daboose Posted June 29, 2011 Author Share Posted June 29, 2011 Here's an update with data! The Vault has turned out to be a nice desktop as well as a long term storage device. The_Vault_28JUN2011.pdf Link to comment Share on other sites More sharing options...

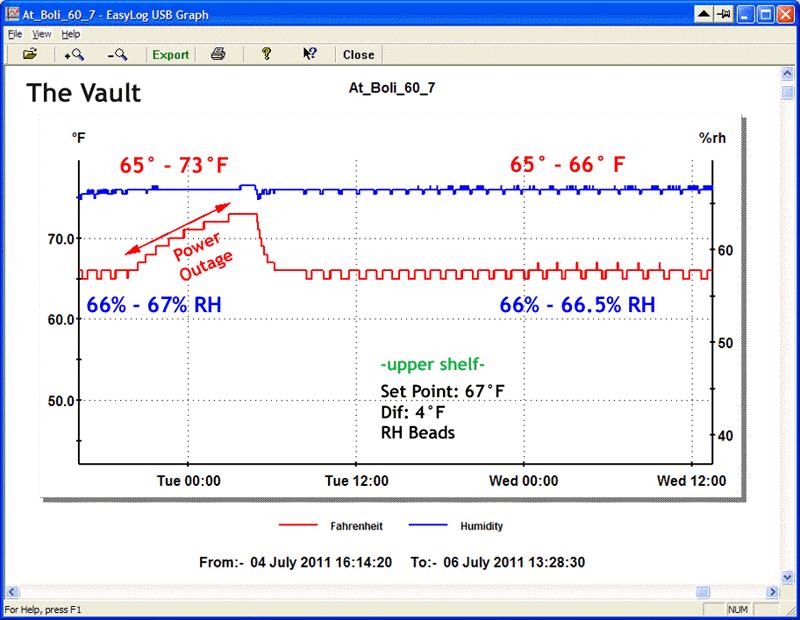

daboose Posted July 11, 2011 Author Share Posted July 11, 2011 More data! This round of data is interesting because a power outage was experienced for just over 5 hours; my baby sits in a hot garage! This caused the temperature inside the airtight container to increase from 65°F to 73°F. Observing what the RH did is even more interesting. Moving the temperature sensor for the external temperature control from the lower section to the middle section proved beneficial. Thus far the summer heat has not proven to be a challenge for The Vault. Enjoy! The_Vault_10JUL2011.pdf Here’s what happened when I experienced a power outage; temperature goes UP and the RH remained steady. Whew! Link to comment Share on other sites More sharing options...
daboose Posted July 11, 2011 Author Share Posted July 11, 2011 Great post by Piggy concerning RH Beads Link Link 2 Link to comment Share on other sites More sharing options...
PigFish Posted July 23, 2011 Share Posted July 23, 2011 That is a great project Dennis and some great data. You have demonstrated nicely what I have been advocating for a long time now. Segregation of a cigar's and isolating them from direct exposure to conditioned air is the key to stability. I have worked a long time flattening cycles in conditioned humidors, but I always keep my cigars in them, in boxes. There is a hugh performance difference from inside and outside those boxes. Great work mate! Your diploma is in the mail... -LOL Link to comment Share on other sites More sharing options...
daboose Posted July 25, 2011 Author Share Posted July 25, 2011 Great work mate! Your diploma is in the mail... -LOL I'll proudly hang it on The Vault. Thanks! 1 Link to comment Share on other sites More sharing options...
mnzoui Posted September 9, 2011 Share Posted September 9, 2011 Great work. I like the simplicity of your system and I want copy it. I live in Riyadh, Saudi Arabia. Here, the temperature can goes up to 120F in summer. My only concern is condensation inside the containers. I am not sure but I think the very cold air in the freezer might result in condensation. Why you use a freezer instead of a refrigerator? Please keep this thread updated. 1 Link to comment Share on other sites More sharing options...
daboose Posted September 14, 2011 Author Share Posted September 14, 2011 Great work. I like the simplicity of your system and I want copy it. I live in Riyadh, Saudi Arabia. Here, the temperature can goes up to 120F in summer. My only concern is condensation inside the containers. I am not sure but I think the very cold air in the freezer might result in condensation. Why you use a freezer instead of a refrigerator? Please keep this thread updated. Hi Mohammed, I wouldn't be concerned about condensation inside the airtight containers. I have never had ANY inside the airtight containers. The RH beads will be more than sufficient. Condensation only appears on the outside of the containers after the freezer door is opened which is of no concern. The condensation only happens in the middle of the summer when the dew point is high. During the heat of the summer (90+F) The Vault runs more often which causes the lower area to be cooler than the upper area. For instance, with my thermostat set at 66F; the upper containers held 65F while the lower area held 61F but the RH held steady; all within Habanos' recommendation and my preference (of course). When the more mild temperatures arrive the temperatures will be more uniform since The Vault cycle less often. I went with a freezer because I thought it would handle the temperature differential better. Also the layout of this Whirlpool surpassed any available refrigerator on the market; adjustable shelving; airflow; locking door; temperature alarm is easily turned off (very important). The Vault has been performing great. And if I get the nerve will set up another in the garage where it's 90+F. Let us know when you start your project. Thanks! Link to comment Share on other sites More sharing options...
randomhero1090 Posted September 15, 2011 Share Posted September 15, 2011 Holy crap! That's impressive. I hate regulating temp. What a pain in the ass. Moving cigars upstairs and downstairs. Blah. Really impressive. Link to comment Share on other sites More sharing options...
brazoseagle Posted September 23, 2011 Share Posted September 23, 2011 Awesome! Link to comment Share on other sites More sharing options...
